Tunnel LED Strip

Name: Tunnel LED Strip
Brand: LEDYi Lighting Co., Ltd.

Uniform Tunnel Lighting

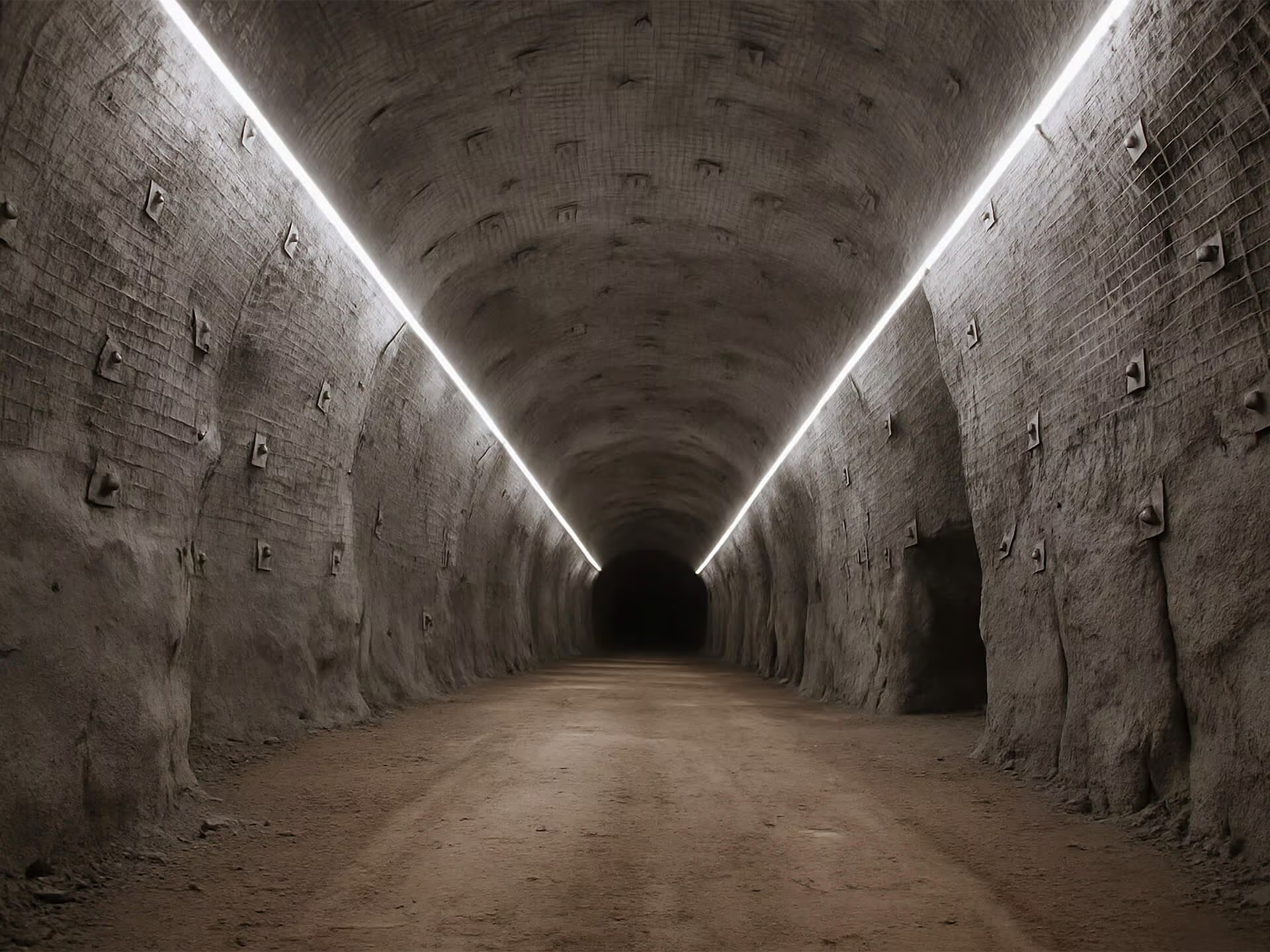

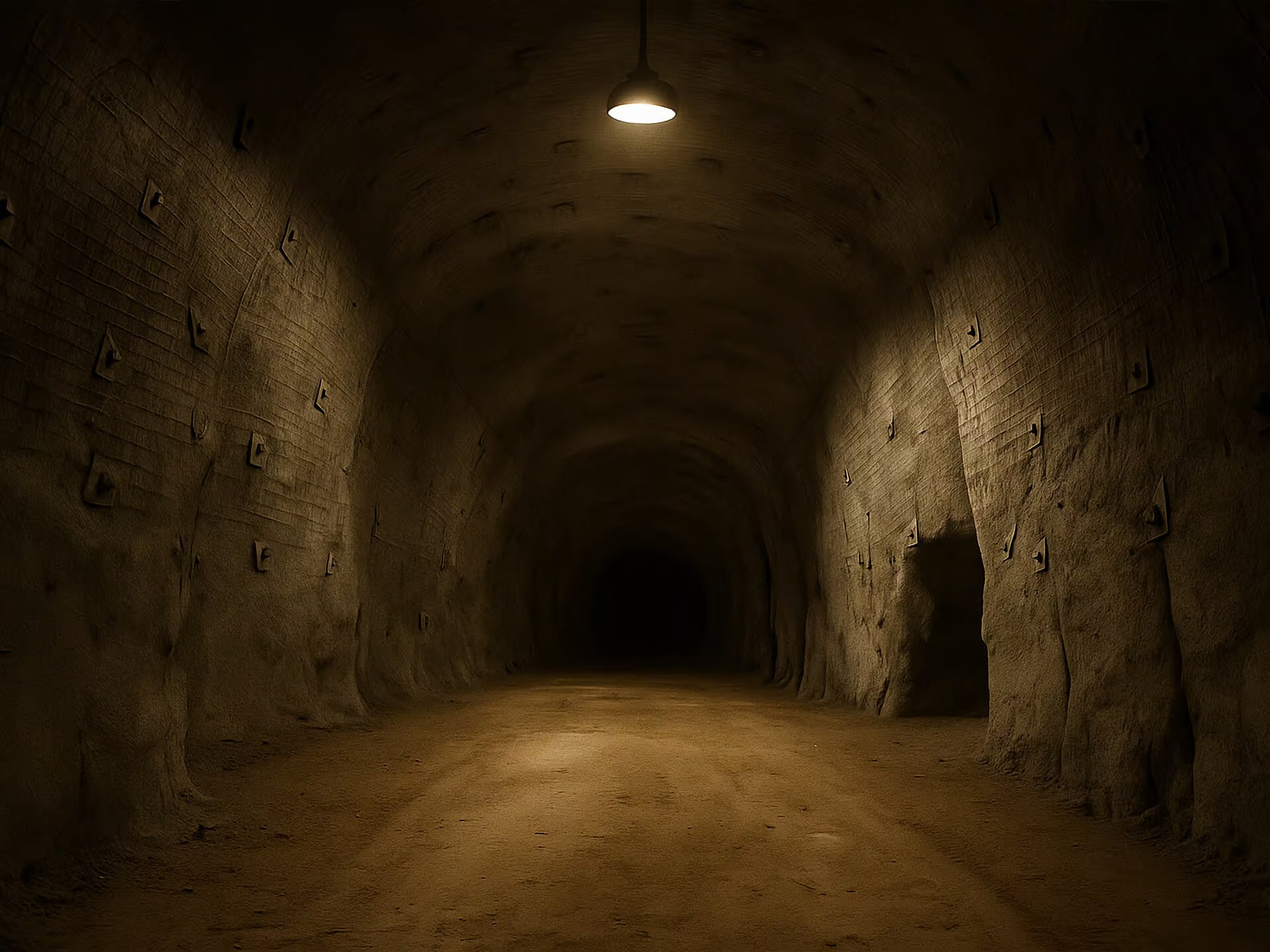

Spaced fixtures leave dark gaps. Switch to Tunnel LED Strip—a continuous 150 m run on a single 48VDC feed at 5 W/m for uniform light with zero voltage drop, up to 127 lm/W. IK10, IP65.

Lighting Applications

Mining tunnels | Substations | Crib rooms | Longwalls | Conveyors

Product Overview

Tunnel LED Strip is a heavy-duty, industrial LED strip engineered for mining and tunnel infrastructure. It replaces spaced fixtures with one continuous line—up to 150 m on a single 48VDC feed at 5 W/m with zero voltage drop—improving visibility and reducing cabling. Mining-grade construction (IK10 impact, IP65 sealing) resists dust, shock, and moisture. With up to 127 lm/W and 20 m pre-terminated reels, it installs quickly and runs reliably on standard 48V constant-voltage supplies.

Key Points:

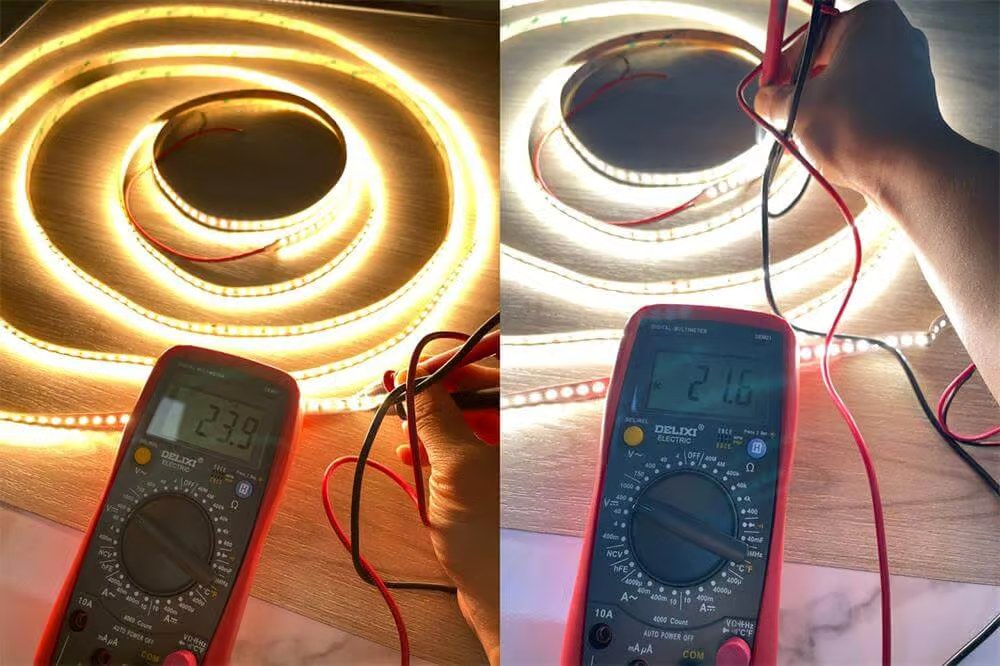

48VDC single-feed: 150 m (5 W/m) / 100 m (8 W/m), zero voltage drop
Performance: up to 1,022 lm/m @ 8 W/m (≈127 lm/W)
Build: 2835 SMD, 140 LEDs/m; 48V constant-voltage input, IC-regulated current for consistent brightness on long runs

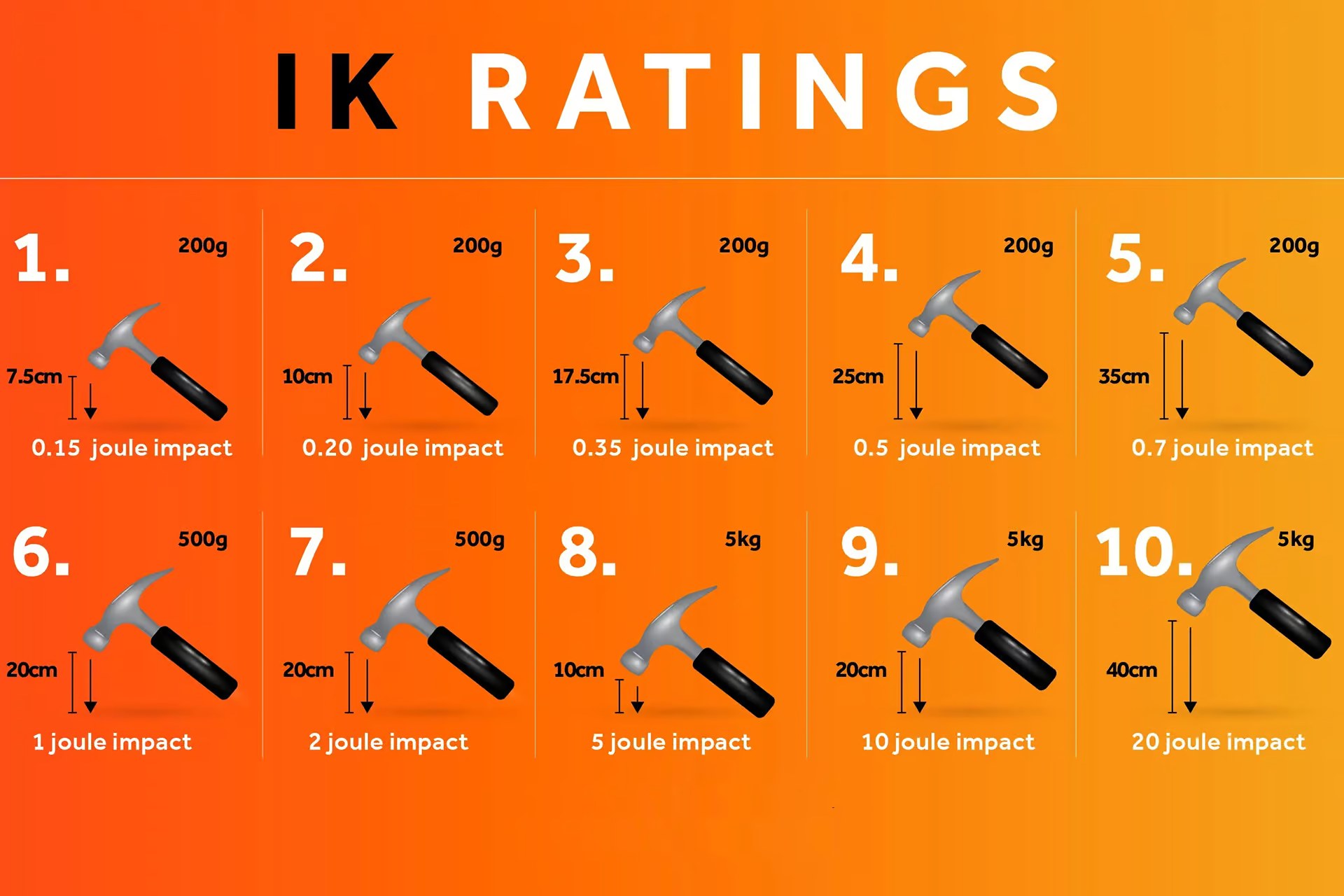

Durability: IK10, IP65, eco-friendly silicone extrusion
Install: 20 m pre-terminated reels with male/female connectors for quick daisy-chain
3-year warranty

Technical Specifications

Basic Parameters

Datasheets & Downloads

Name	Download
Tunnel LED Strip Specification	Download

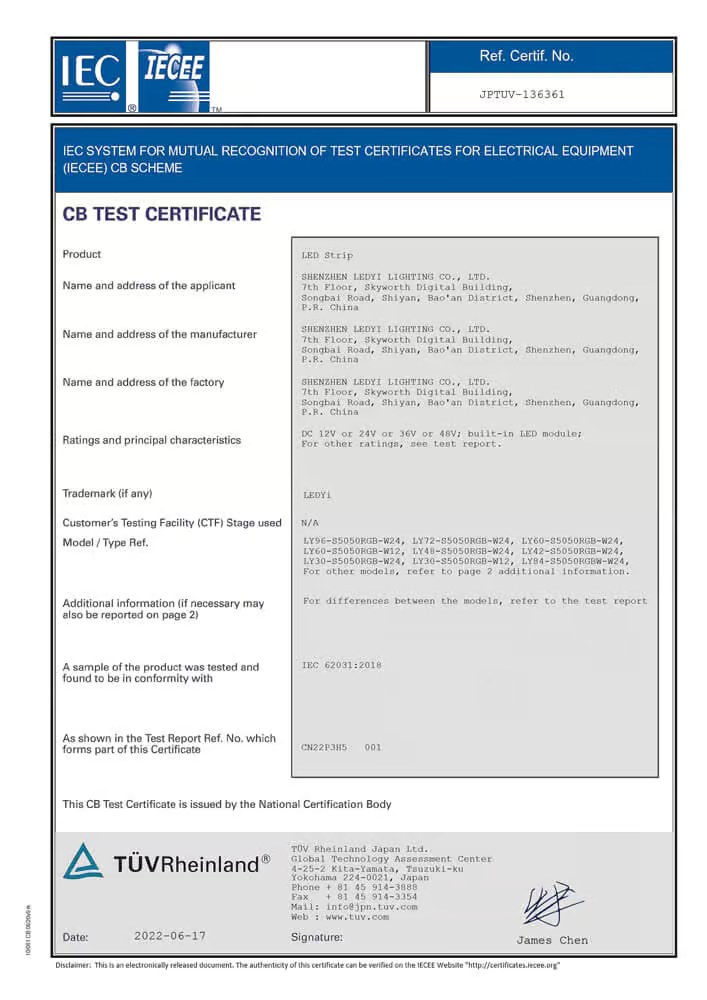

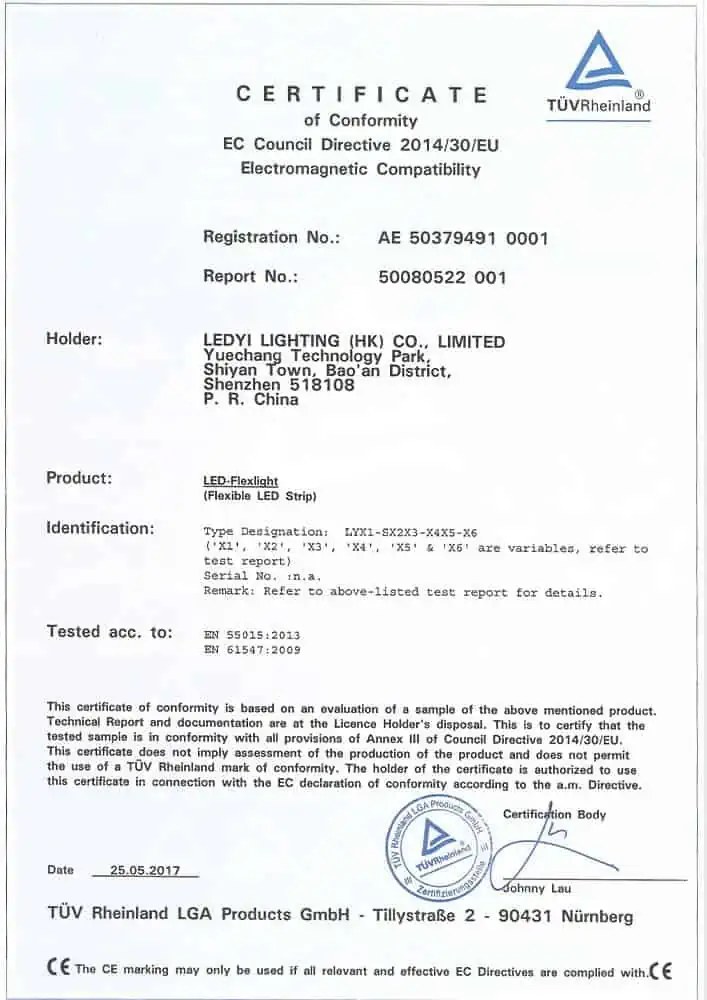

Certifications

For detailed certificates and test reports, please visit our certifications page — see all certifications →

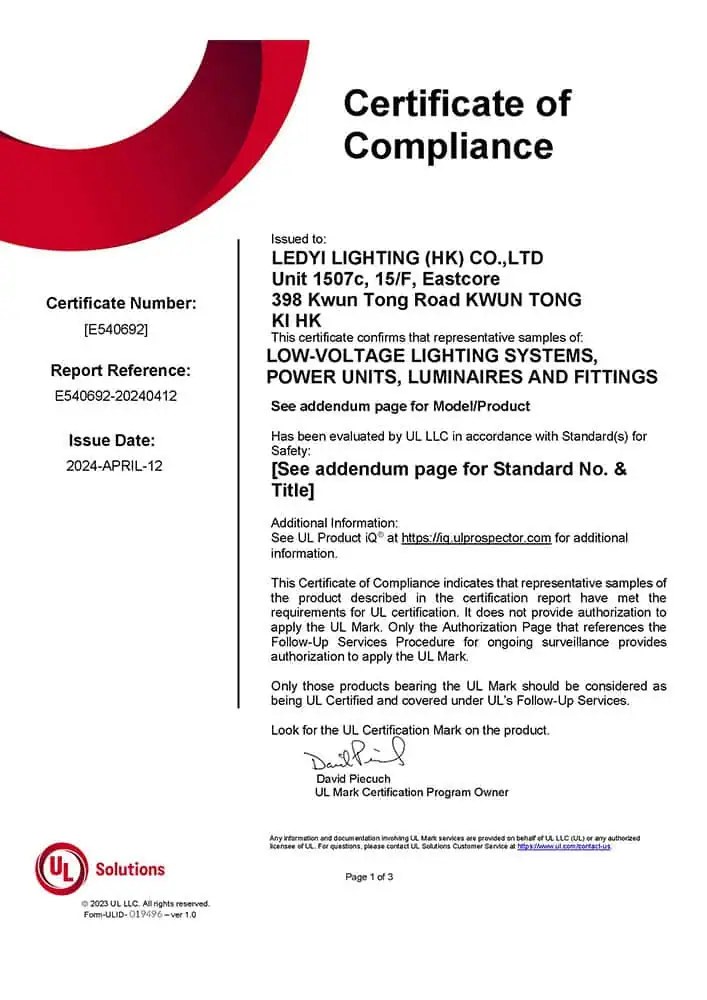

UL Certificate of Compliance for LED Lighting Products.

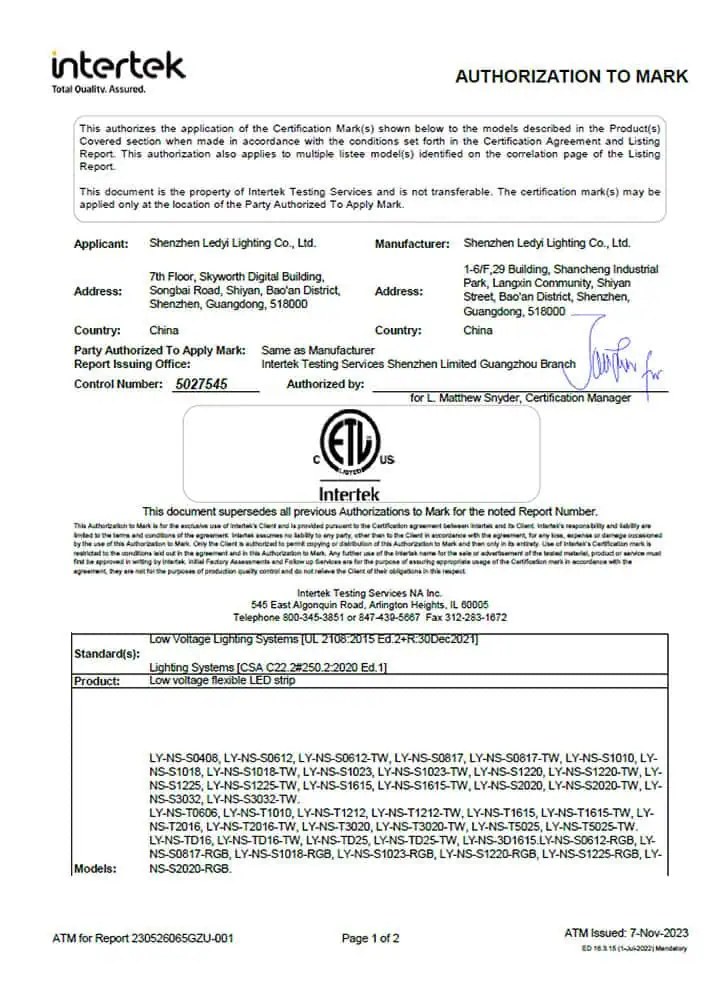

Intertek certification document for low voltage LED strips.

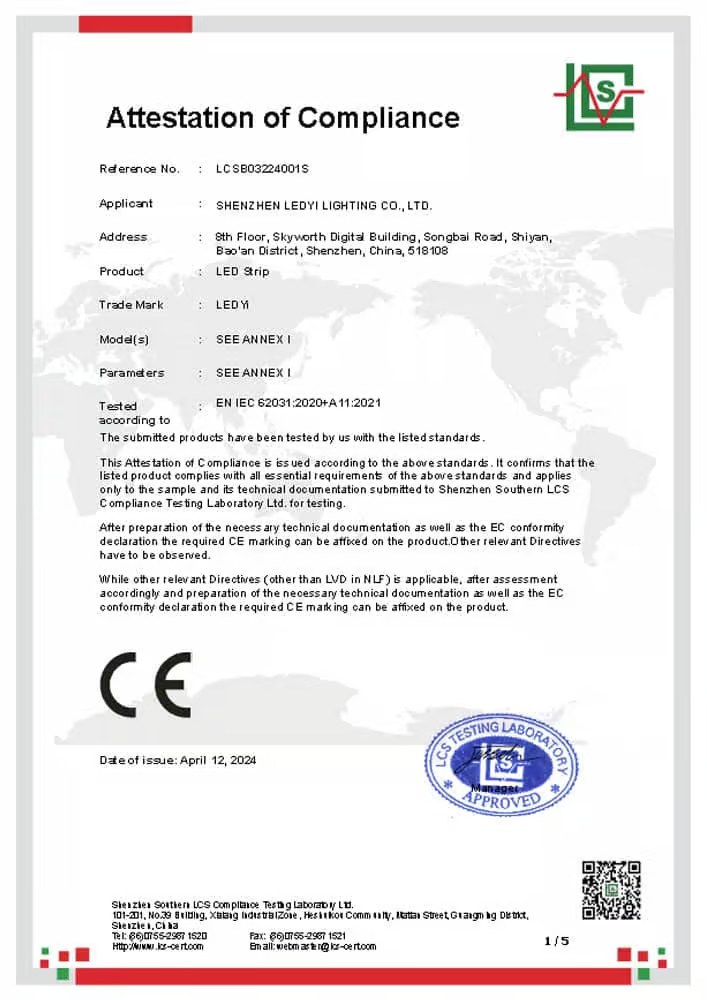

LED strip compliance certificate from Shenzhen Ledyi Lighting.
