New ErP Regulation LED Strip

What is The New ErP Regulations?

ErP is the abbreviation of Energy-related Products. It also refers to Energy-related Products Directive (ErP) 2009/125/EC that replaced the old Energy-using Products Directive (EuP) in November 2009. The original EuP was taken into use in 2005 to fulfill the Kioto agreement requirements for reducing carbon dioxide emissions.

The ErP broadened the range of products that were covered in EuP. Earlier only directly energy-consuming (or using) products were covered. Now ErP directive also covers the products related to energy. This could be for example water-saving taps, etc.The idea is to cover the whole product supply chain: design stage, production, transport, packaging, storage, etc.

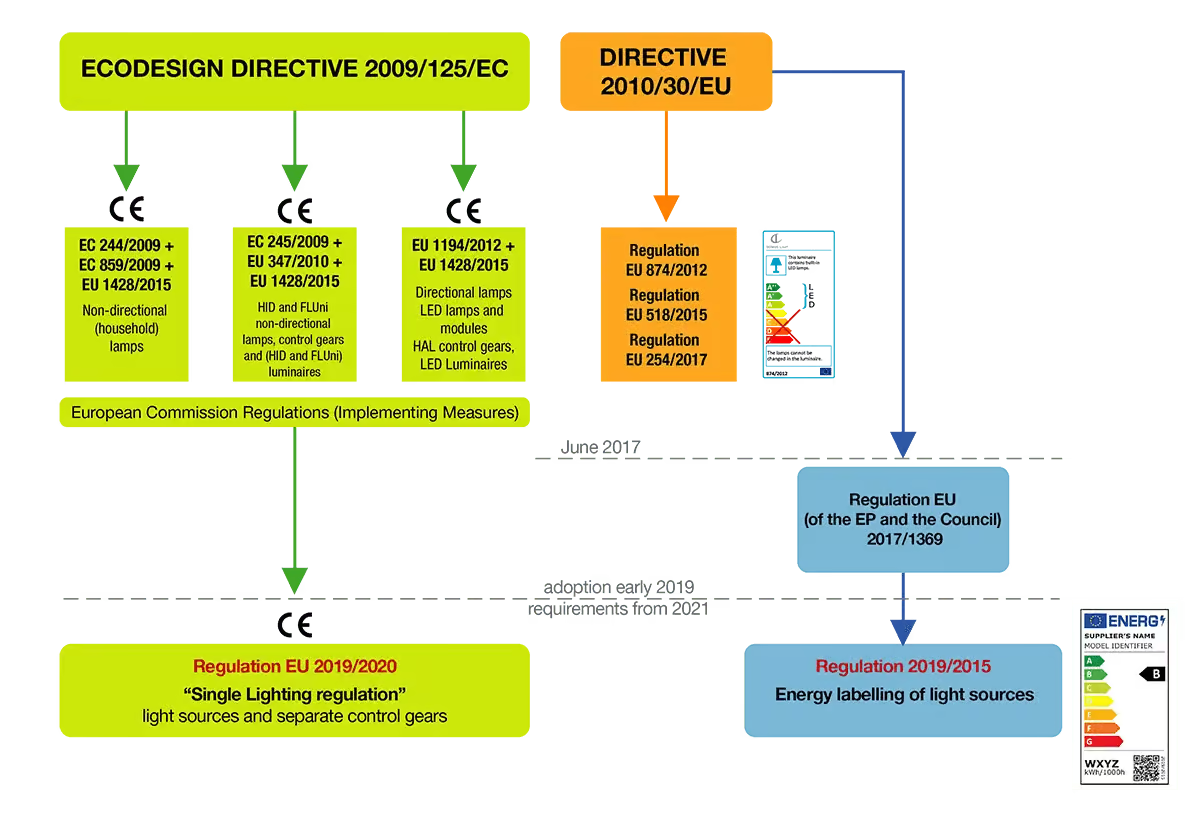

The former ErP directives EC 244/2009, EC 245/2009, EU 1194/2012 and Energy Label directive EU 874/2012 had been taken effect for more than10 years. Recently, the European Commission has reviewed these regulations and analyzed the technical, environmental and economic aspects of lighting products as well as real-life user behavior and issued new ErP directives EU 2019/2020 and energy label directive EU 2019/2015.

What Does The New ErP Regulation Contain?

• ➤EU SLR – Single Lighting Regulation | Commission Regulation (EU) No 2019/2020 laying down ecodesign requirements for light sources and separate control gear. You can read the SLR in full here.
• ➤EU ELR – Energy Labelling Regulation | Commission Regulation (EU) No 2019/2015 laying down energy labelling requirements of light sources. You can read the ELR in full here.

When Will The New ErP Regulation Be Implemented?

Single Lighting Regulation | Commission Regulation (EU) No 2019/2020Effective date: 2019/12/25Implementation date: 2021/9/1Old regulations and their expiration dates: (EC) 244/2009, (EC) 245/2009 & (EU) 1194/2012 expires from 2021.09.01

Energy Labelling Regulation | Commission Regulation (EU) No 2019/2015Effective date: 2019/12/25Implementation date: 2021/9/1Old regulations and their expiration dates: (EU) No 874/2012 was invalid from 2021.09.01, but the clauses on the energy efficiency label of lamps and lanterns was invalid from 2019.12.25

Subject Matter And Scope of New ErP Regulation

1. This Regulation establishes ecodesign requirements for the placing on the market of(a) light sources;(b) separate control gears.The requirements also apply to light sources and separate control gears placed on the market in a containing product.

2. This Regulation shall not apply to light sources and separate control gears specified in points 1 and 2 of Annex III.

3. Light sources and separate control gears specified in point 3 of Annex III shall comply only with the requirements of point 3(e) of Annex II.Please click here for more details.

Ecodesign Requirements

For the purposes of compliance and verification of compliance with the requirements of this Regulation, measurements and calculations shall be made using harmonised standards the reference numbers of which have been published for this purpose in the Official Journal of the European Union, or other reliable, accurate and reproducible methods, which take into account the generally recognised state-of-the-art.

Please click here for more detail information.

Energy Labelling Requirements

Please click here for more detail information.

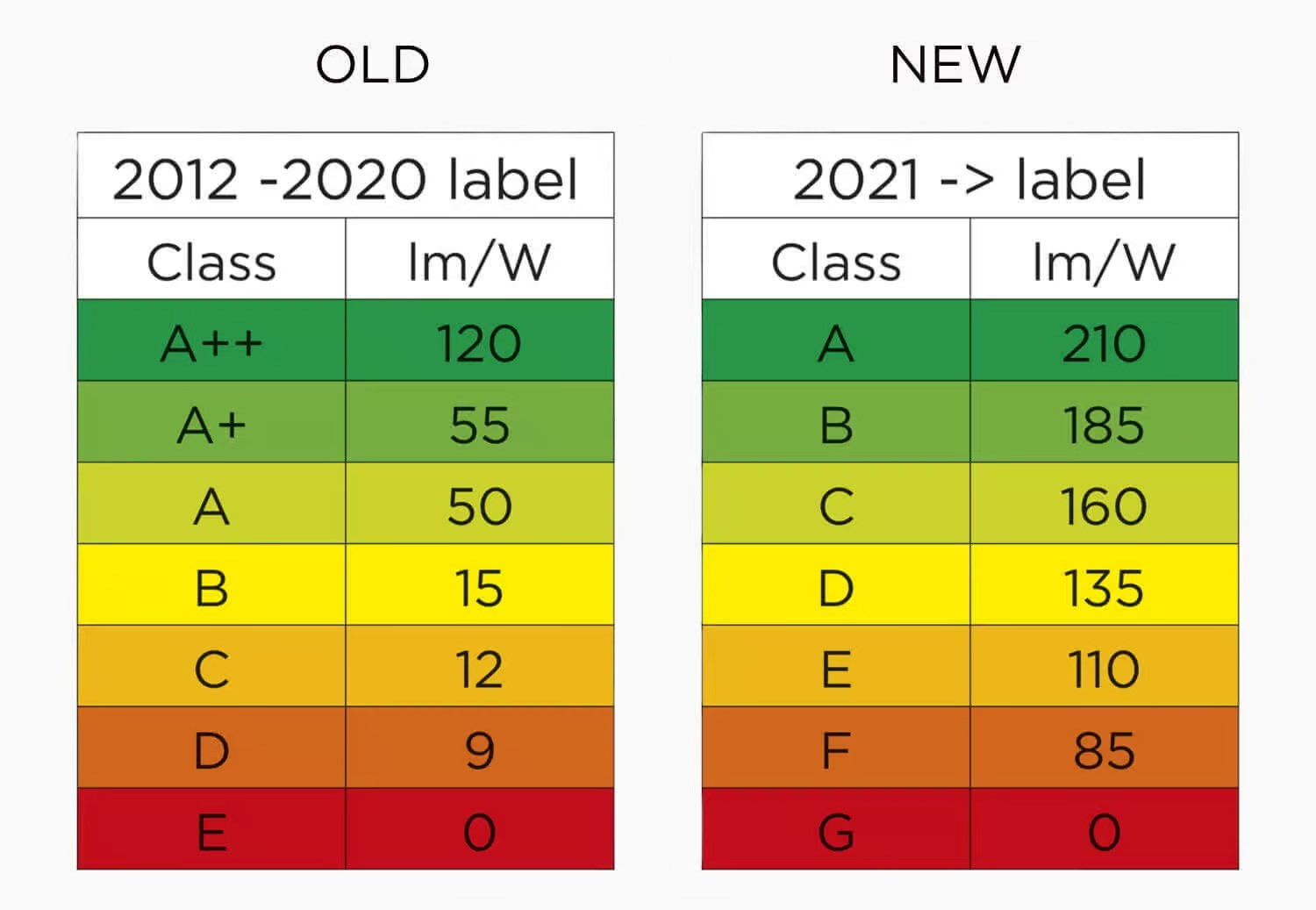

Energy Efficiency Classes And Calculation Method

The energy efficiency class of light sources shall be determined as set out in Table 1, on the basis of the total mains efficacy ηTM, which is calculated by dividing the declared useful luminous flux Φuse (expressed in lm) by the declared on-mode power consumption Pon (expressed in W) and multiplying by the applicable factor FTM of Table 2, as follows:

ηTM = (Φuse/Pon) × FTM (lm/W).

Table 1

Energy efficiency classes of light sources

Table 2

Factors FTM by light source type

EPREL: What Lighting Businesses Need To Know

Working with new energy labelling is now unavoidable for the lighting industry, so it’s worth familiarising yourself with its standard requirements for its use.

• ➤New energy labels cannot be publicised prior to 1st of September 2021
• ➤ALL applicable products, either on the market or intended to be placed onto the market, must be registered in the EPREL database if intended for the EU marketplace
• ➤ALL applicable products, either on the market or intended to be placed onto the market, must have the new energy rating label, suitable for the EU market and/or UK market
• ➤Energy Related Products (ERP) must be compliant to their respective efficiency regulations – for lighting – if it’s in scope – that’s the SLR.
• ➤As of 1st September, 2021, ONLY SLR compliant products can be placed on the market, or if already placed on the market they may continue to be saleable.
• ➤Data within the EPREL database must be fully complete in order for the item to be published as live – and therefore considered saleable.
• ➤Products on the market with incomplete EPREL registrations will be deemed non-compliant by market surveillance.

You can use the EPREL to register products here.

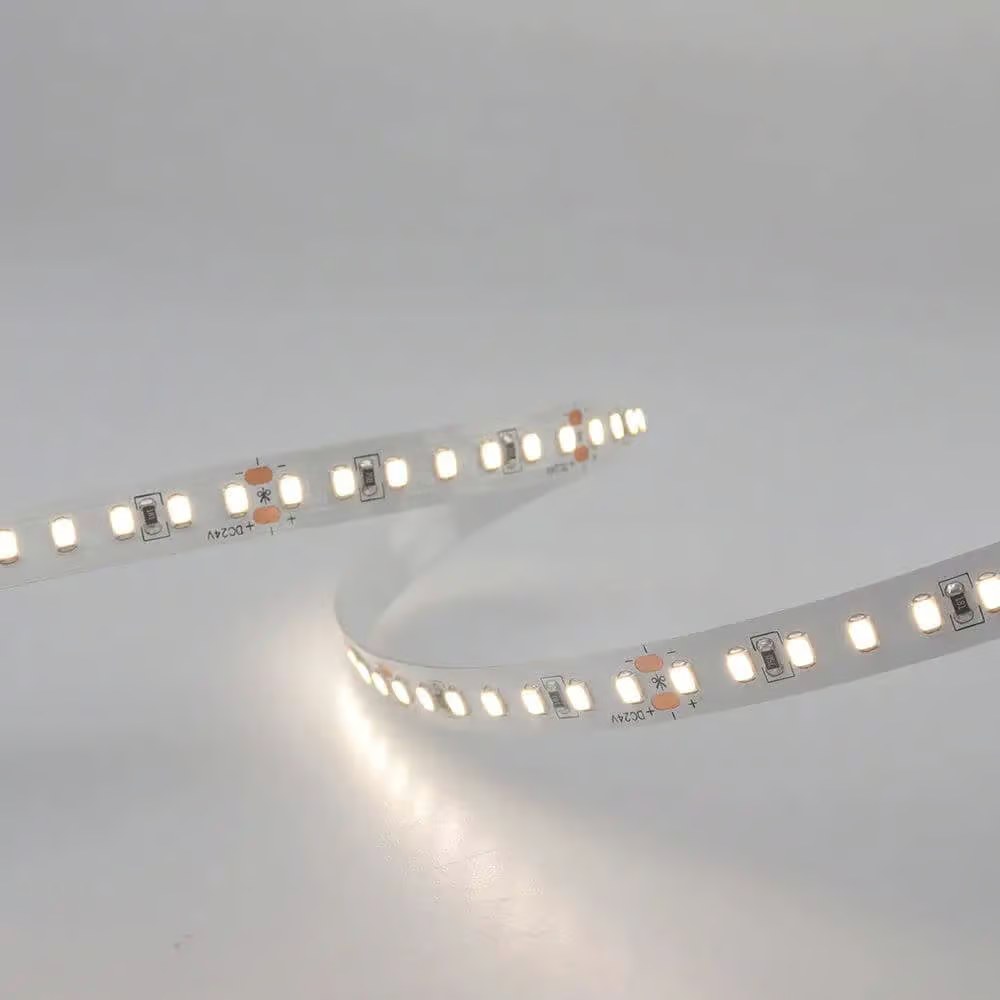

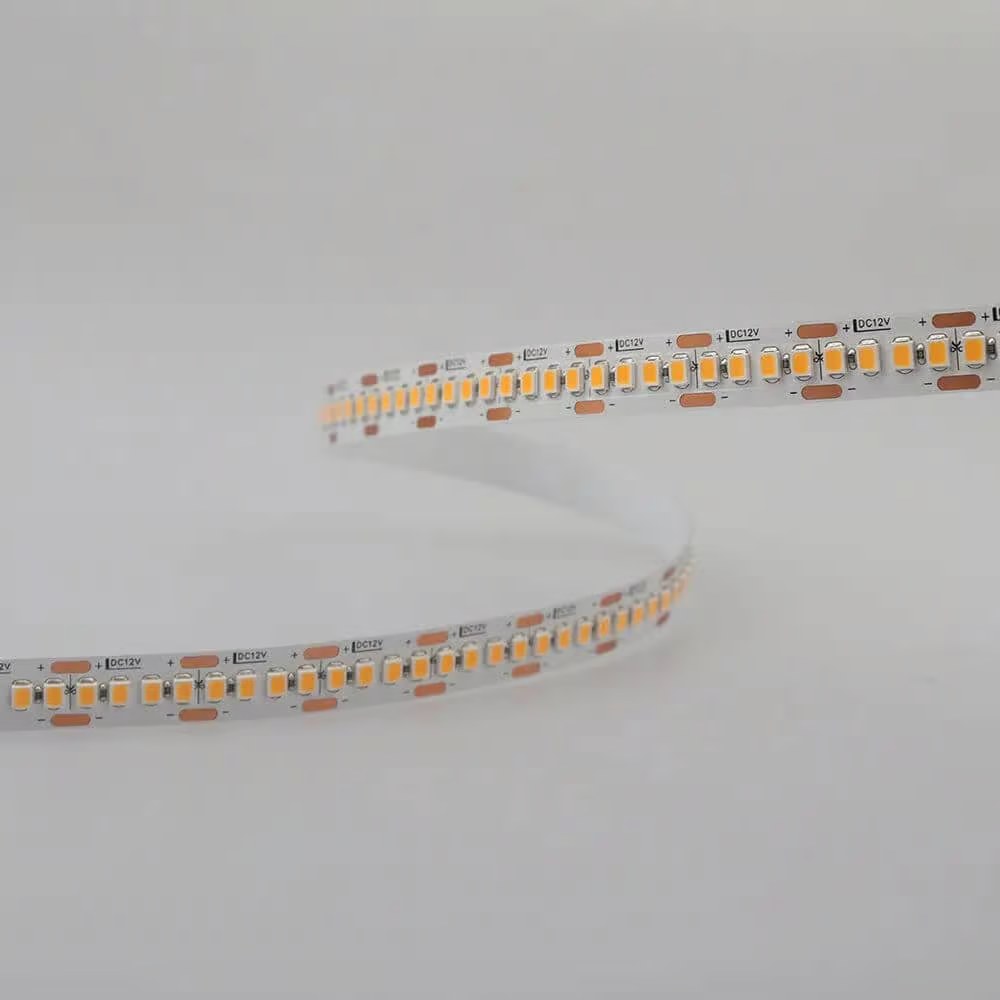

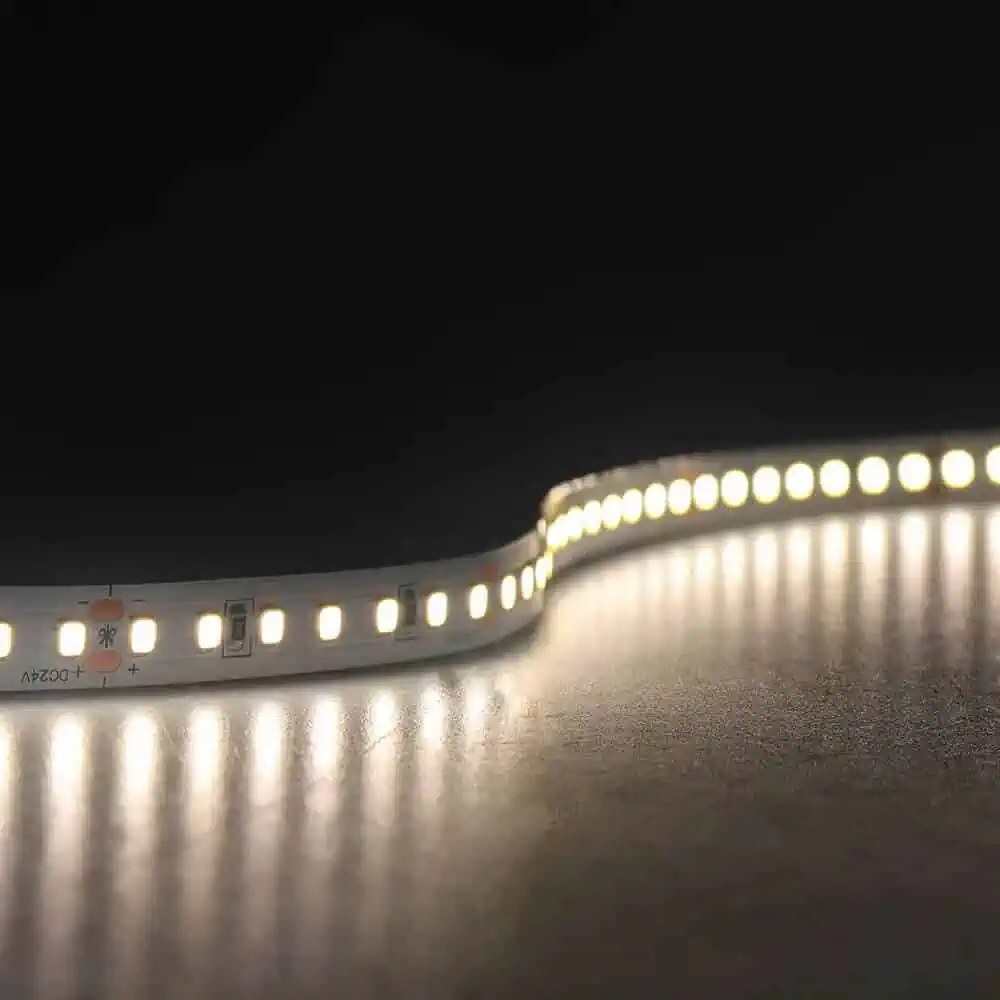

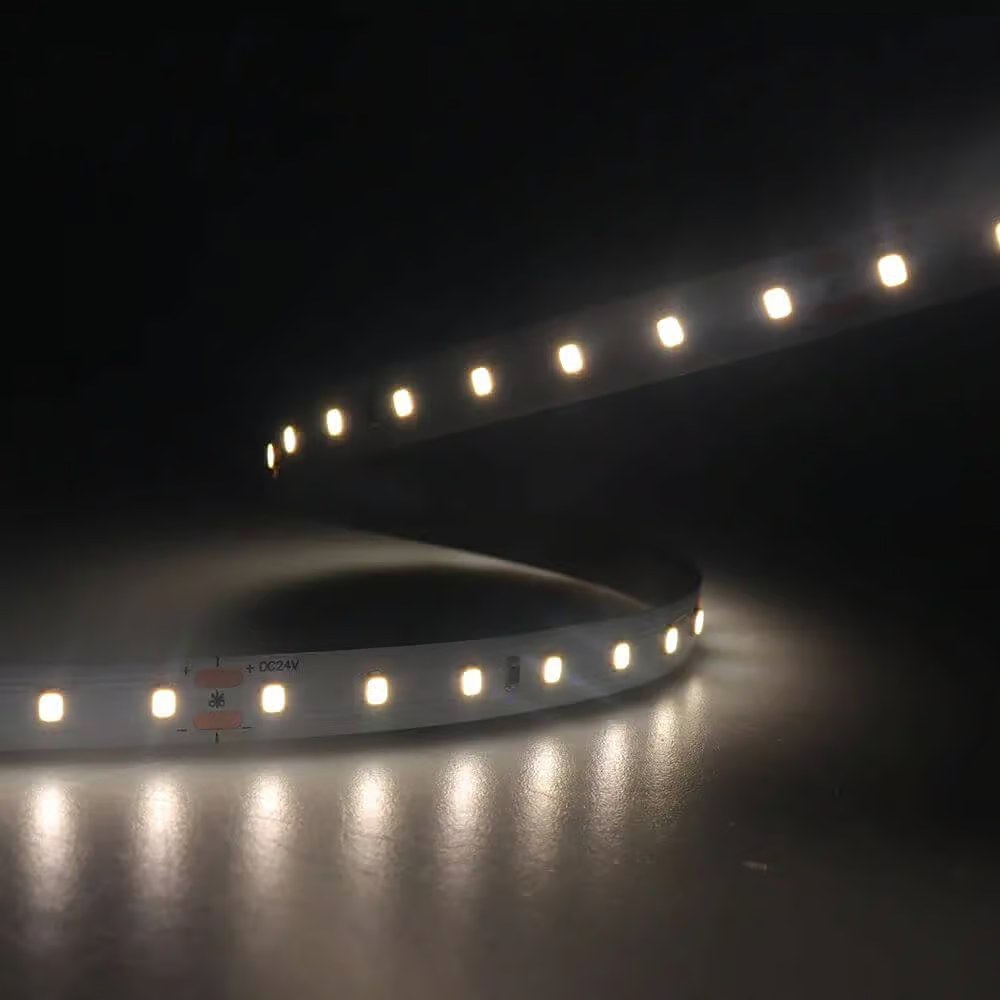

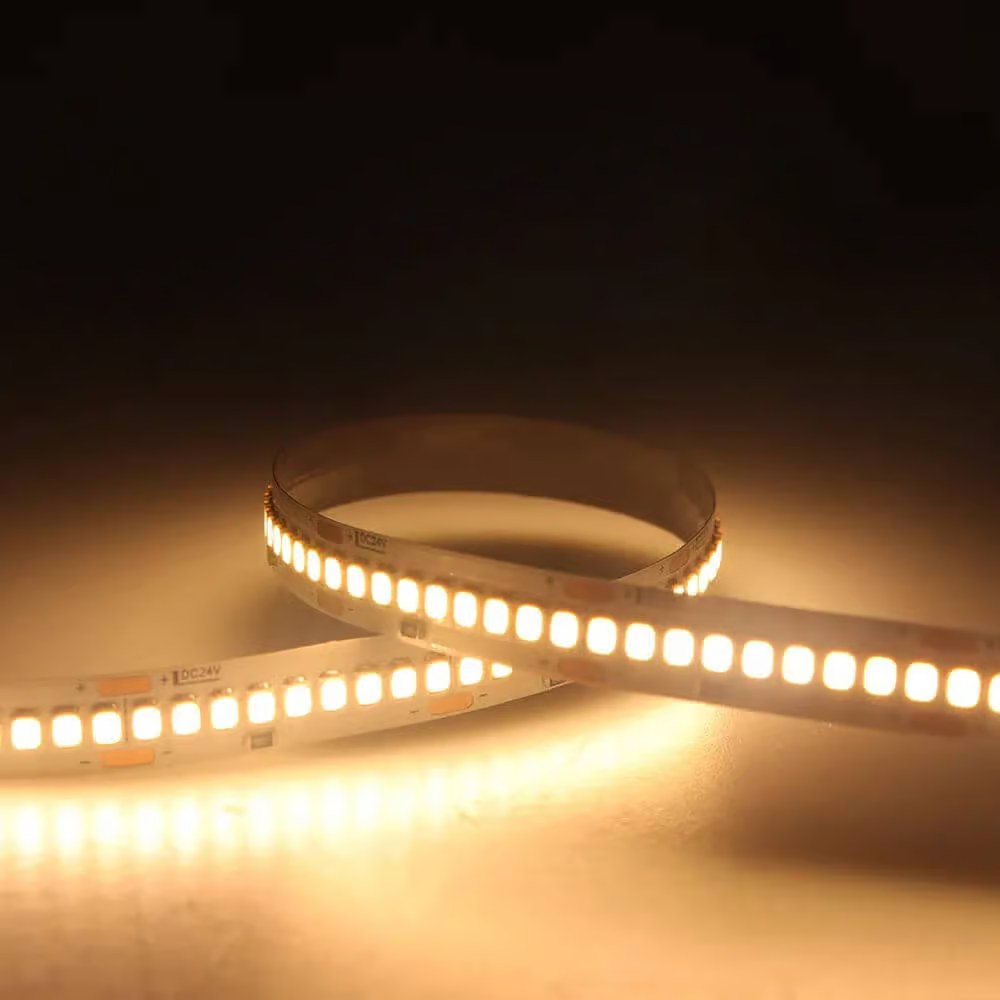

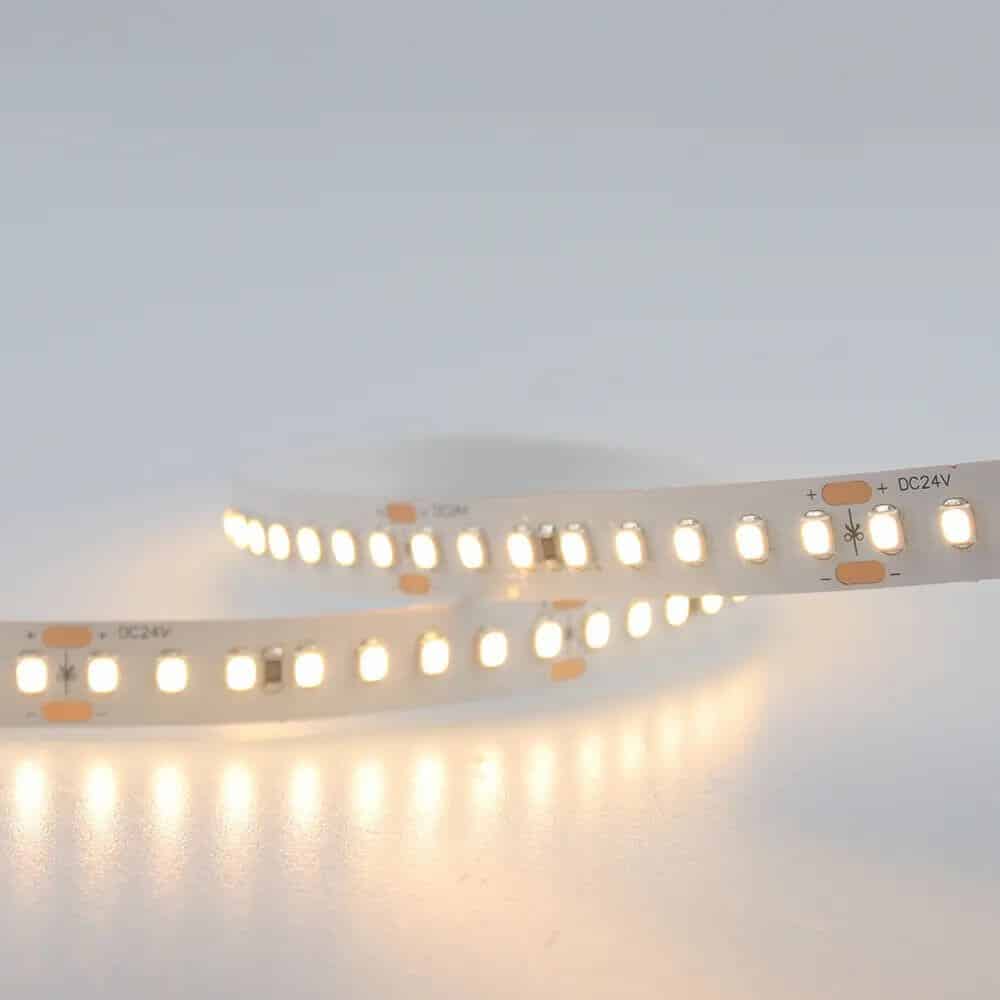

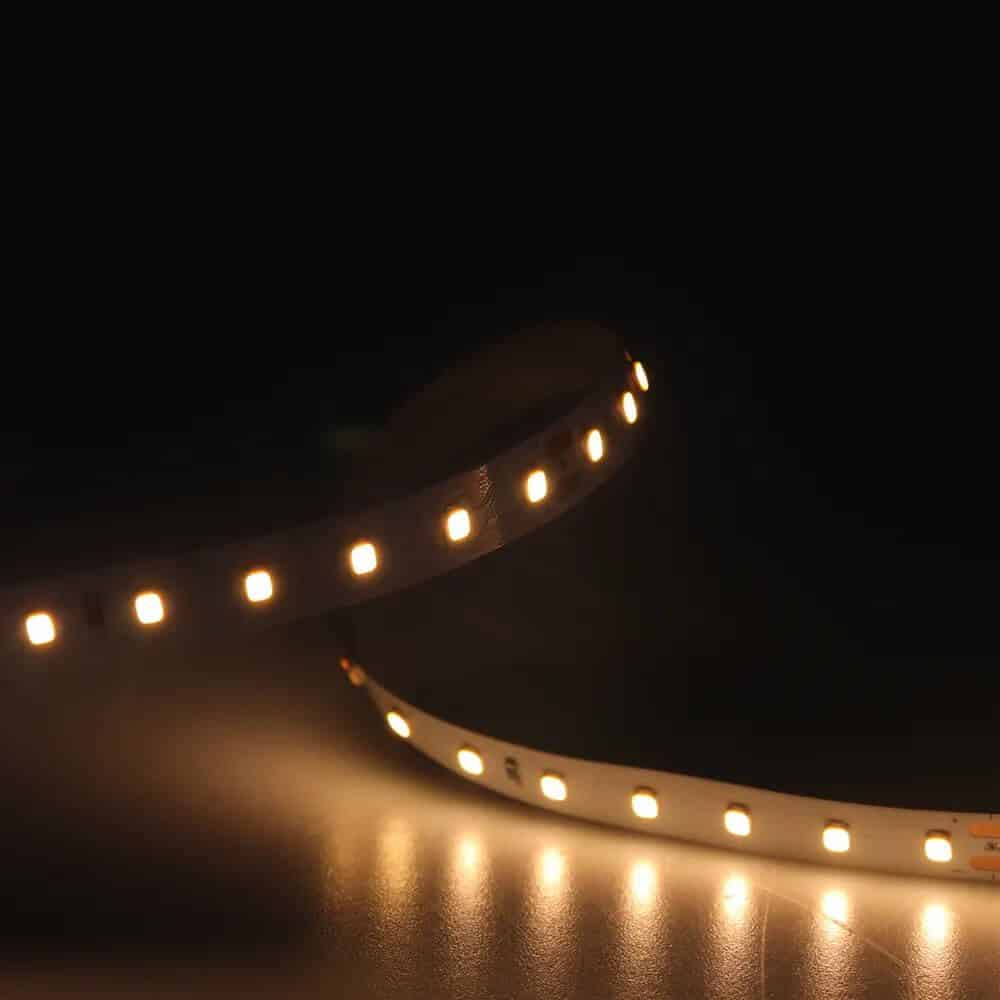

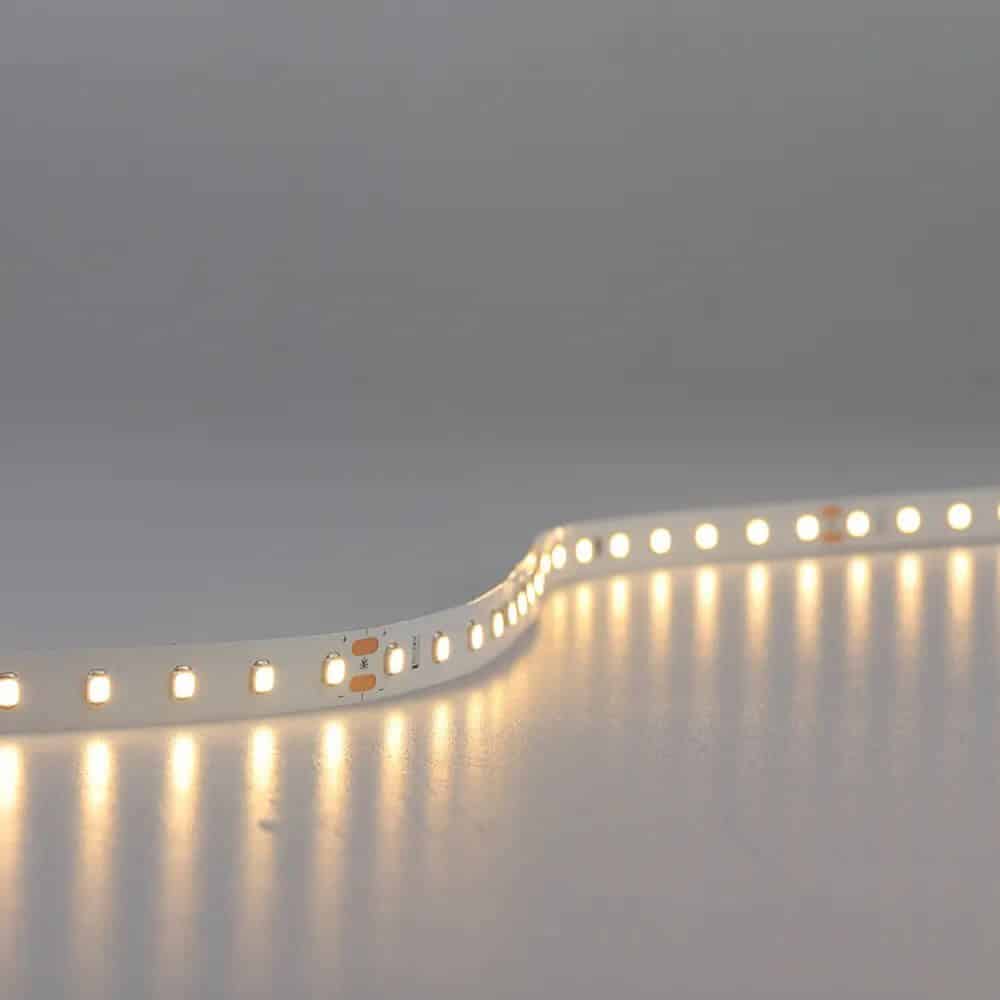

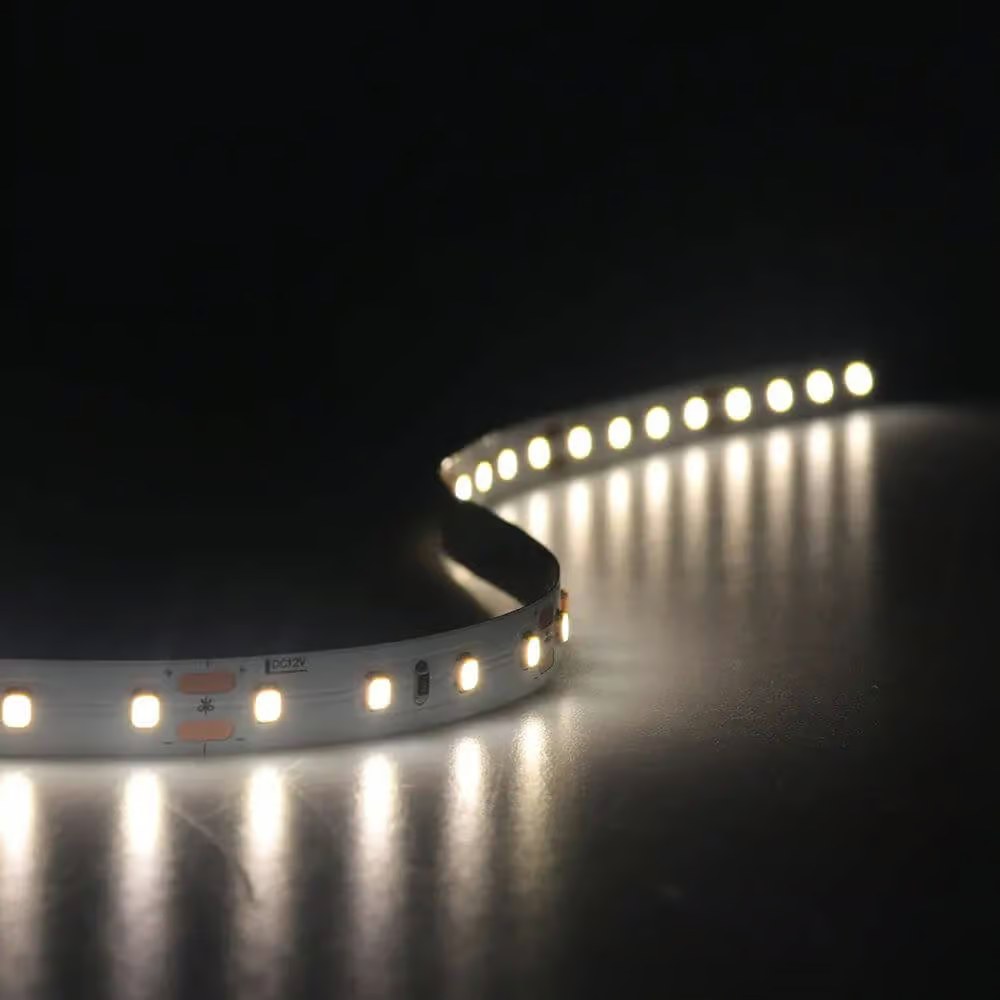

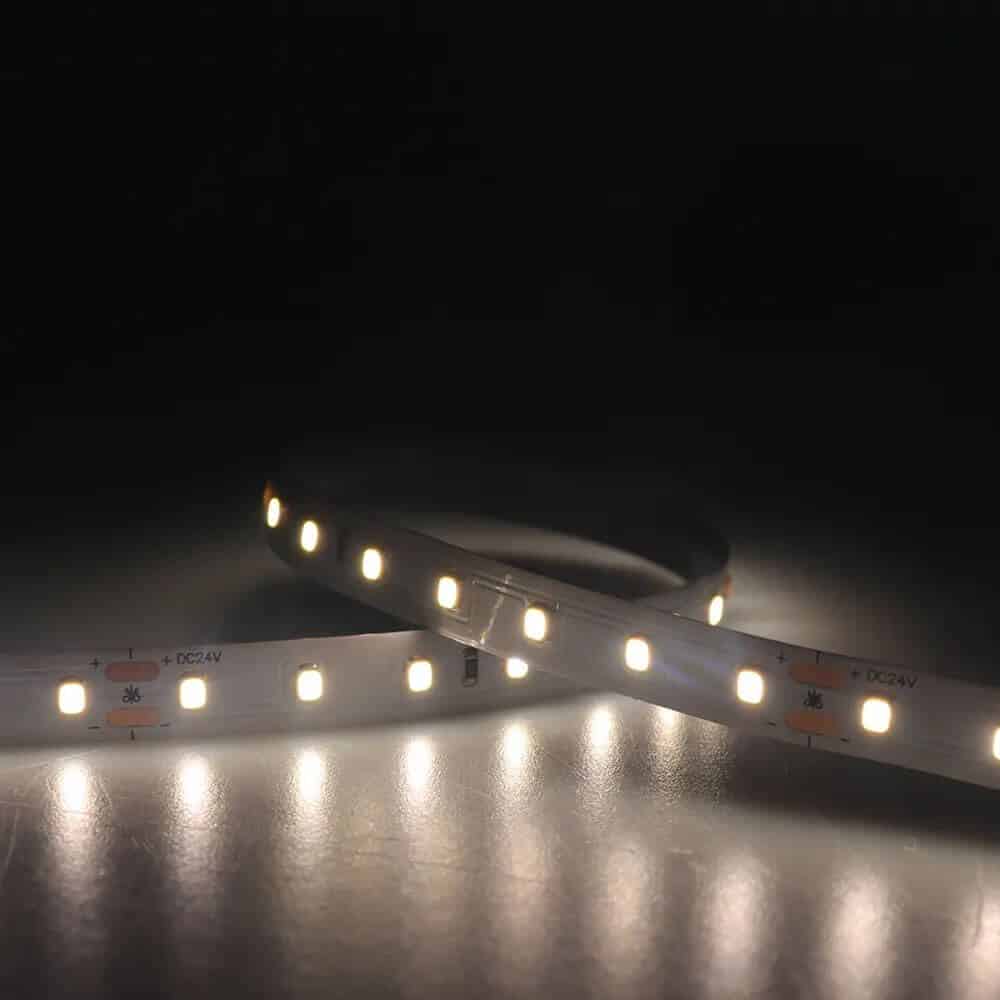

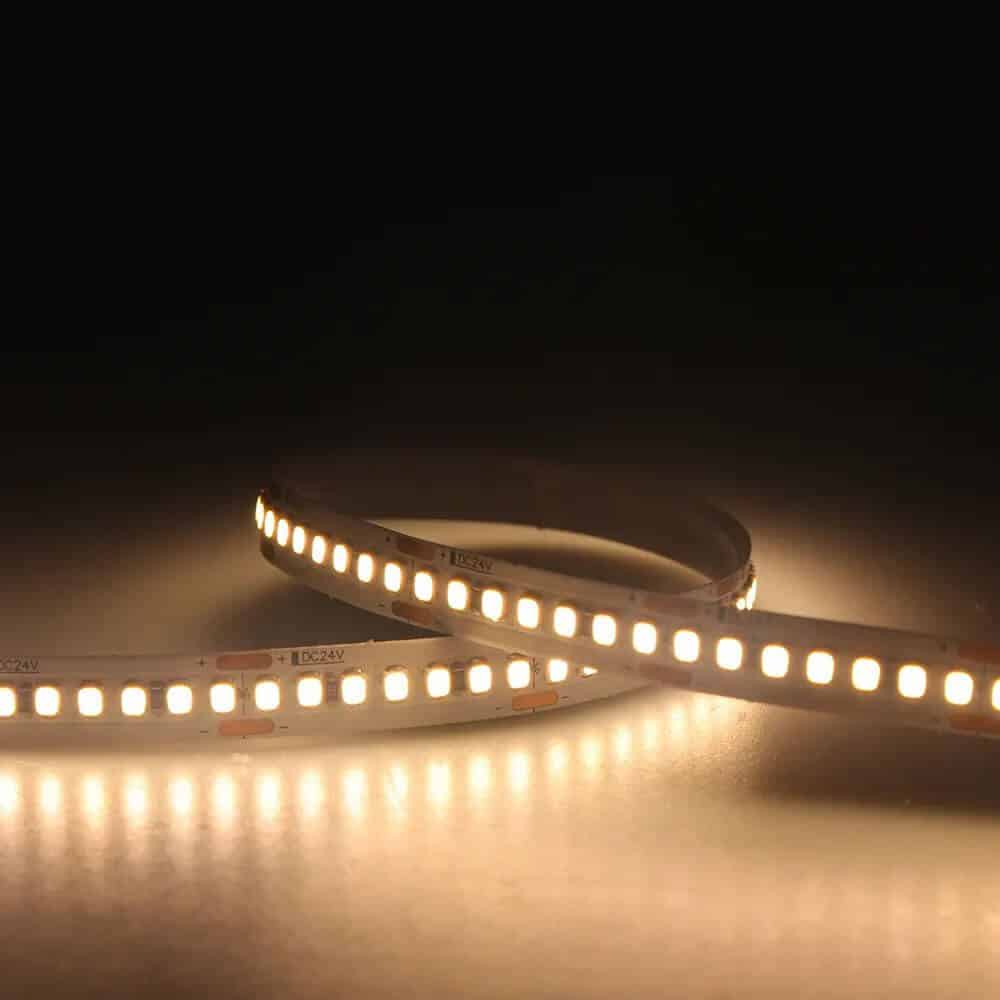

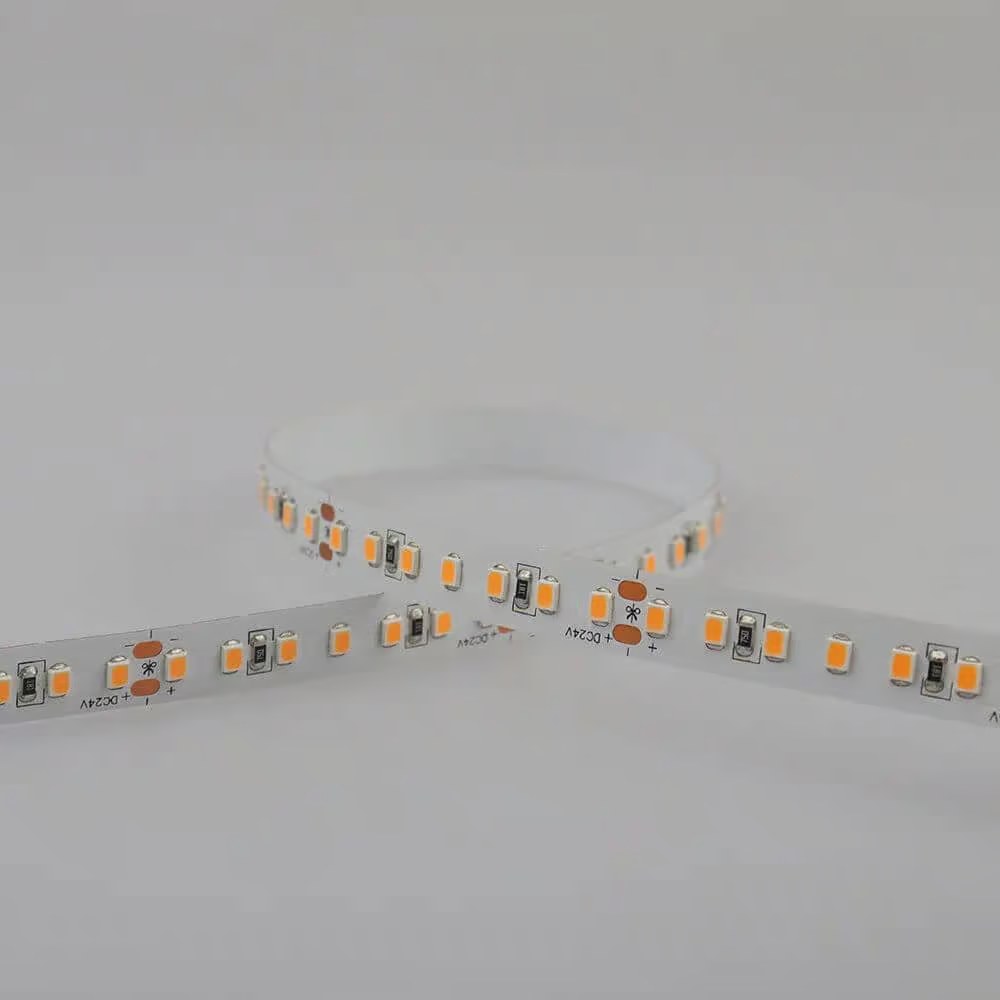

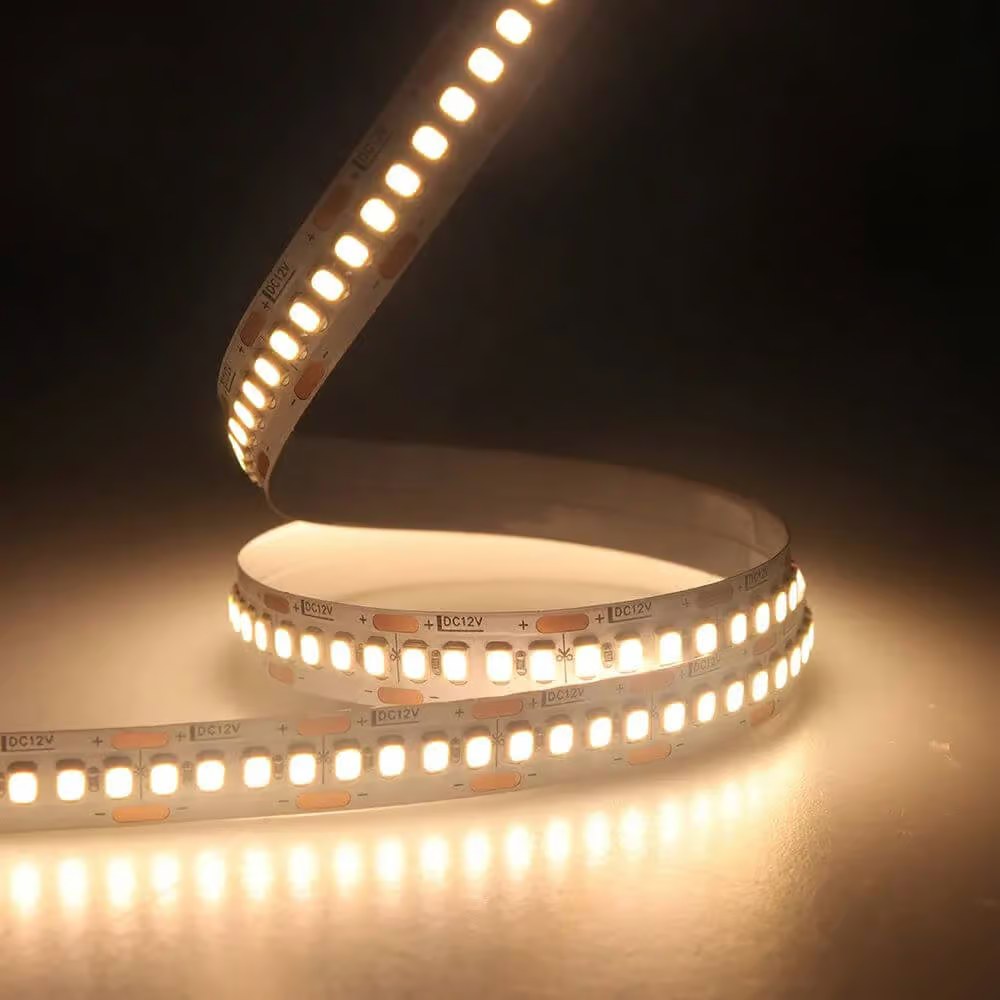

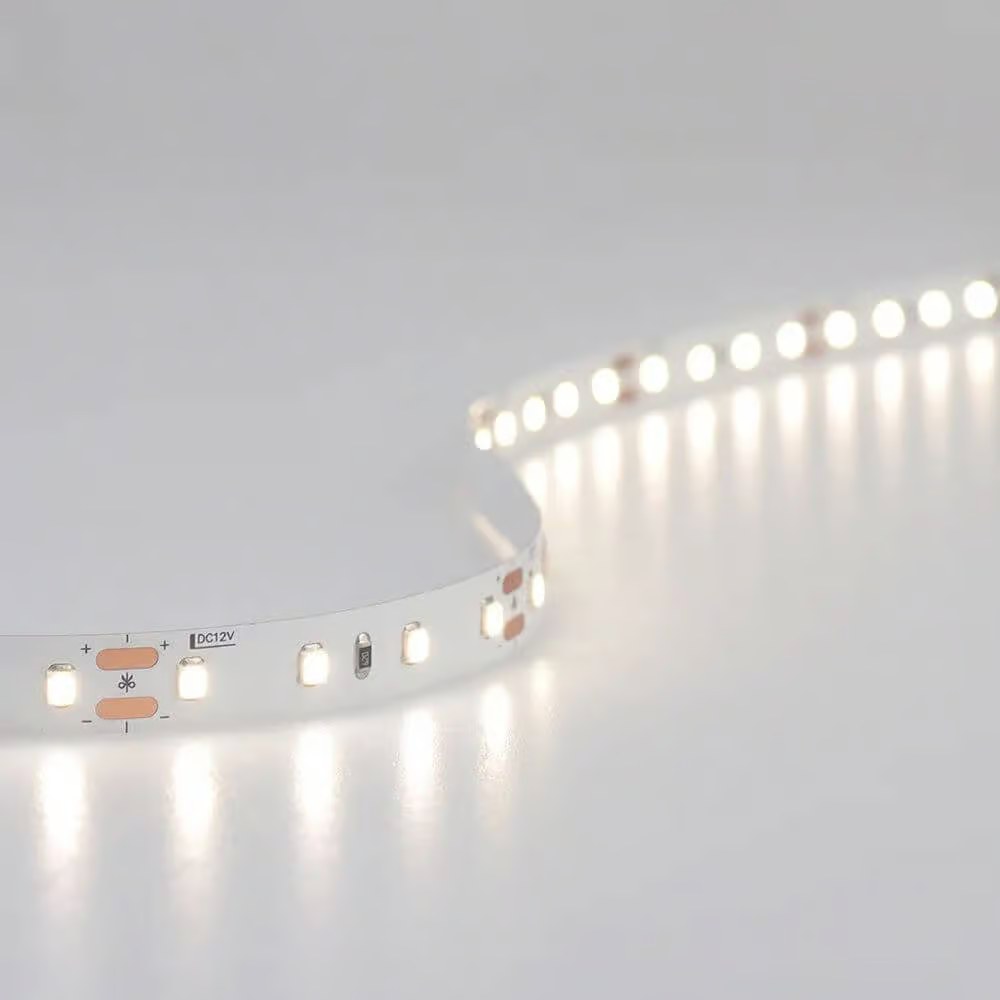

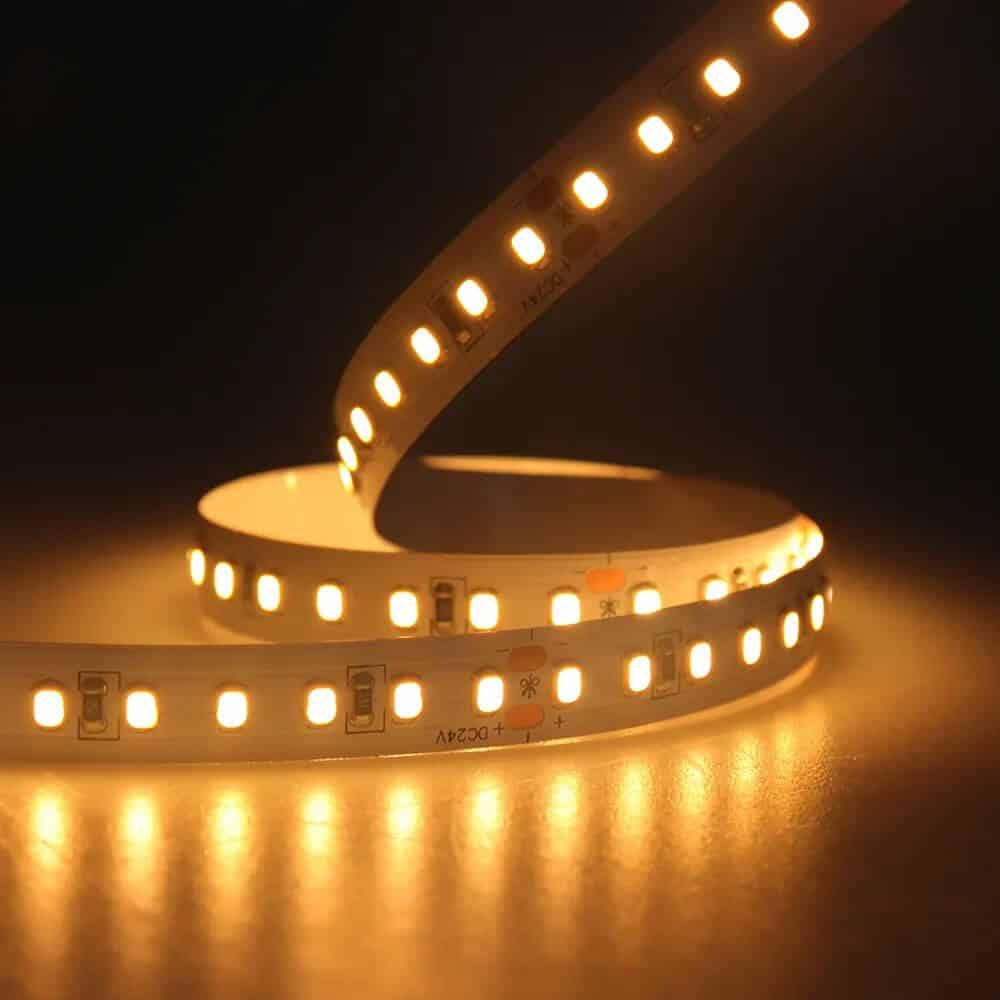

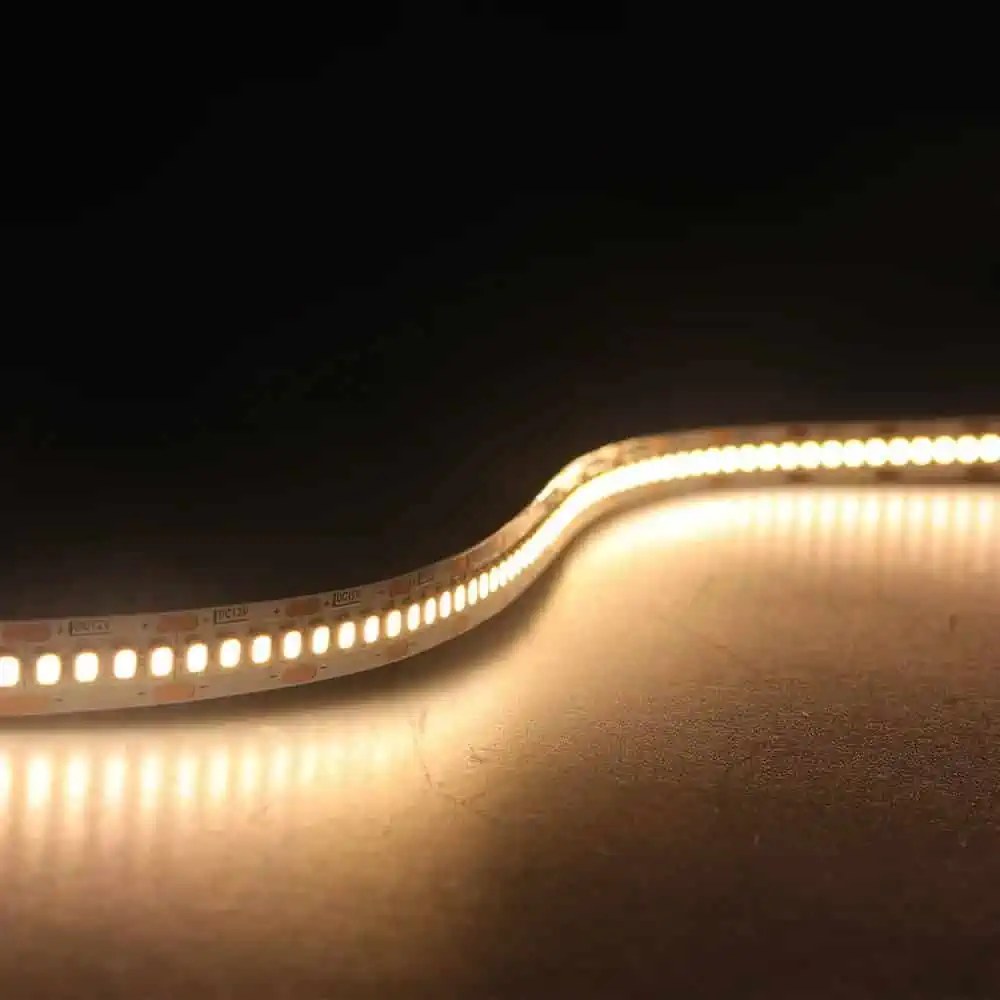

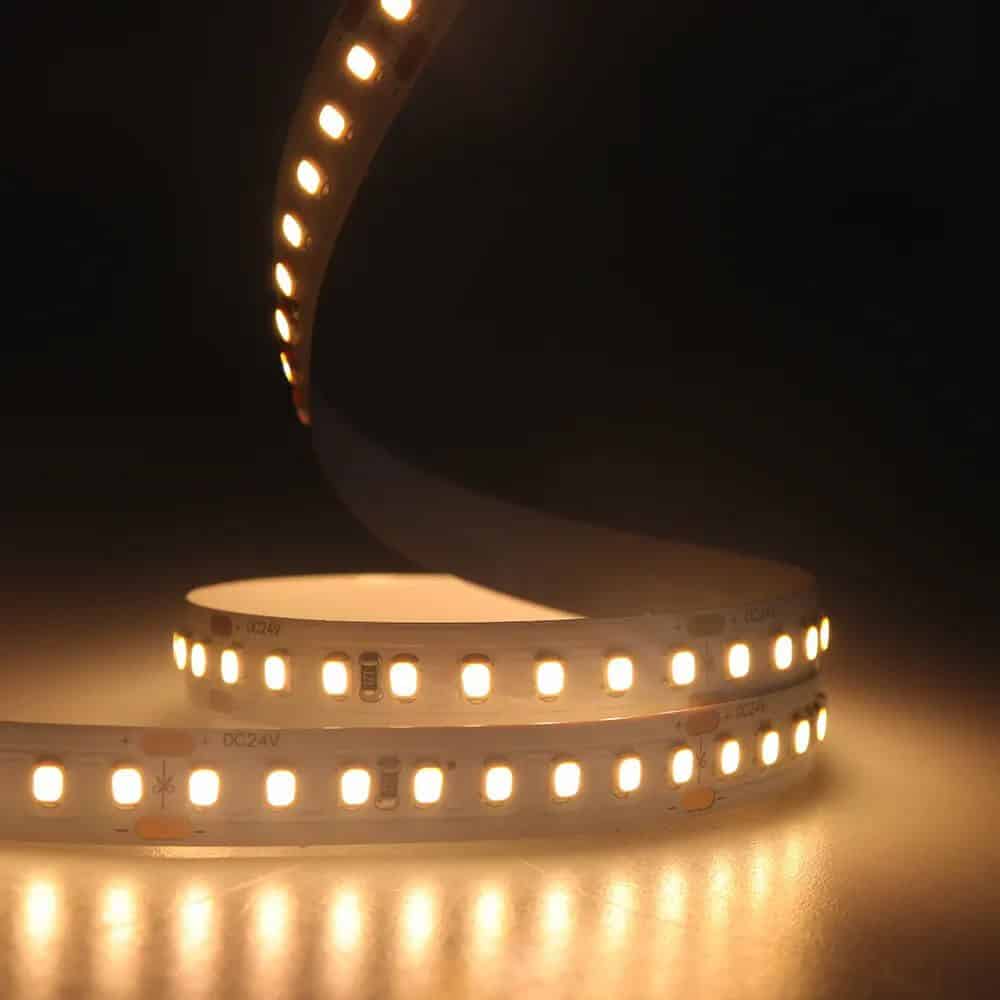

LED Strips Compliant With New ErP Regulations

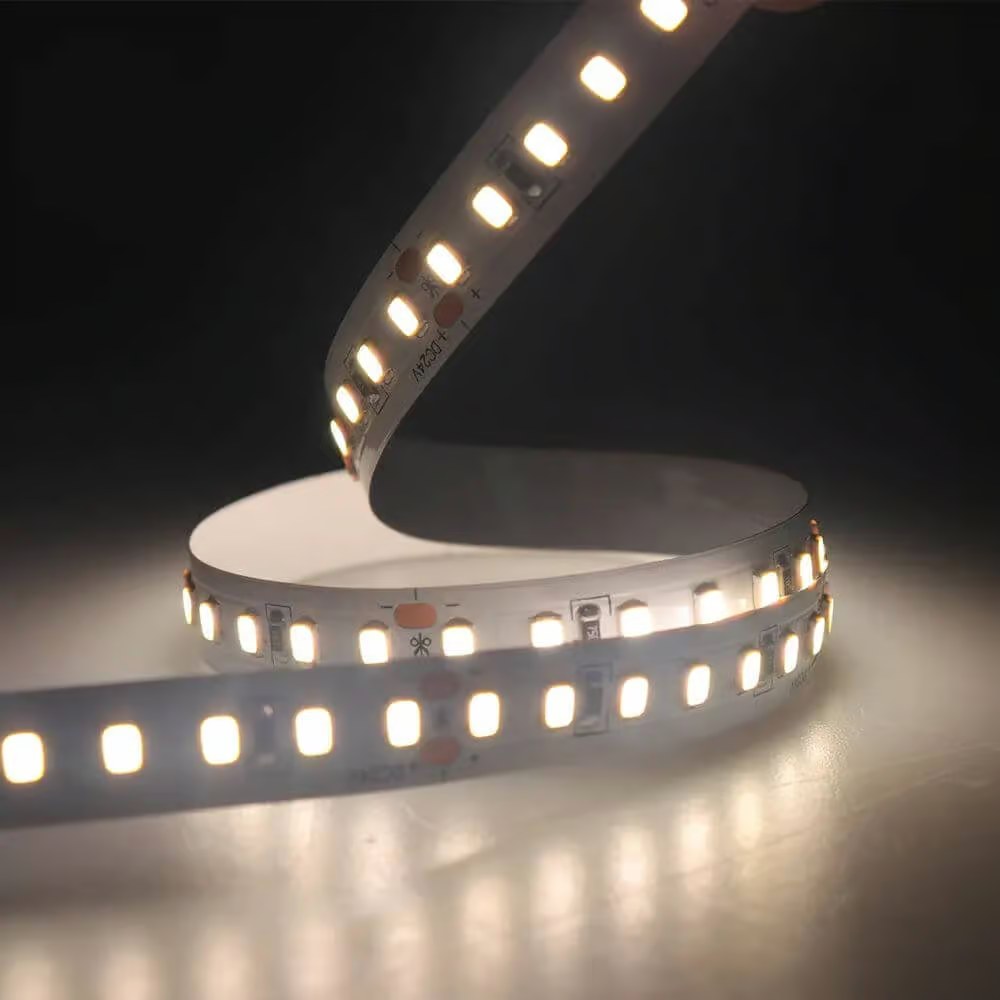

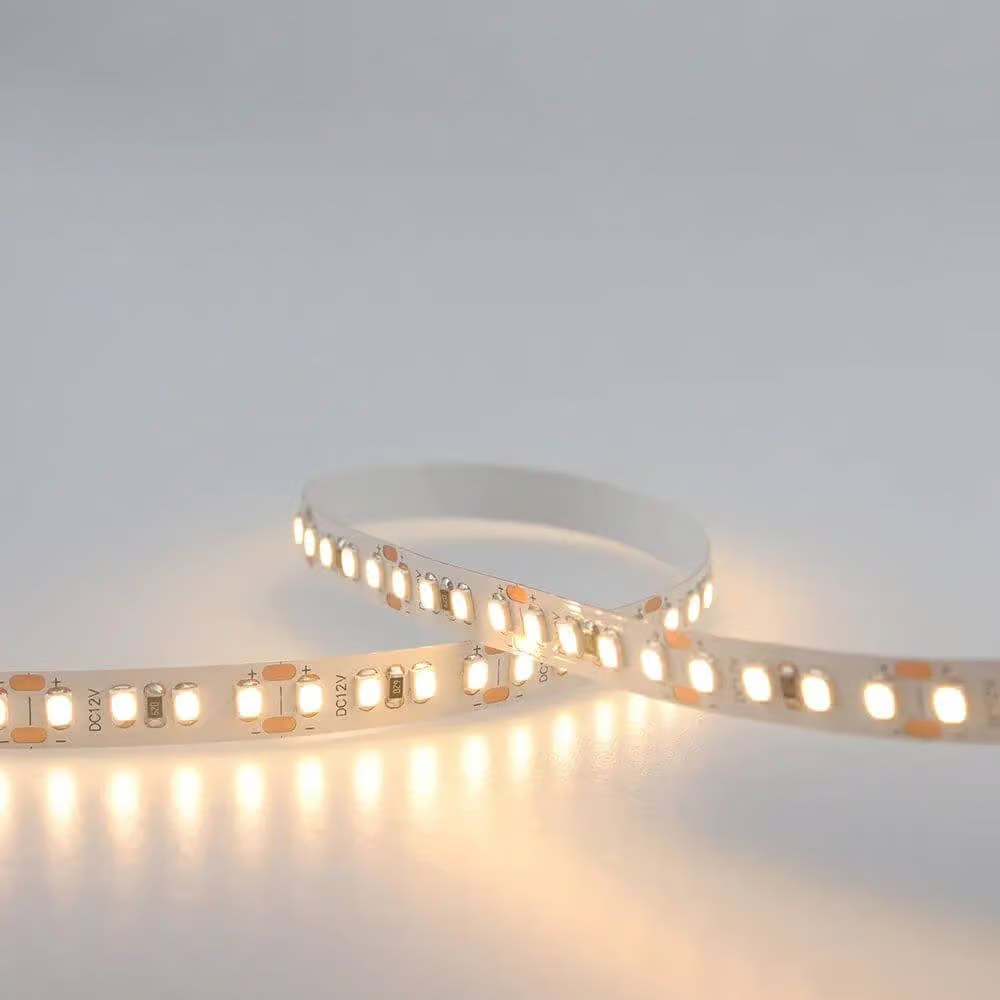

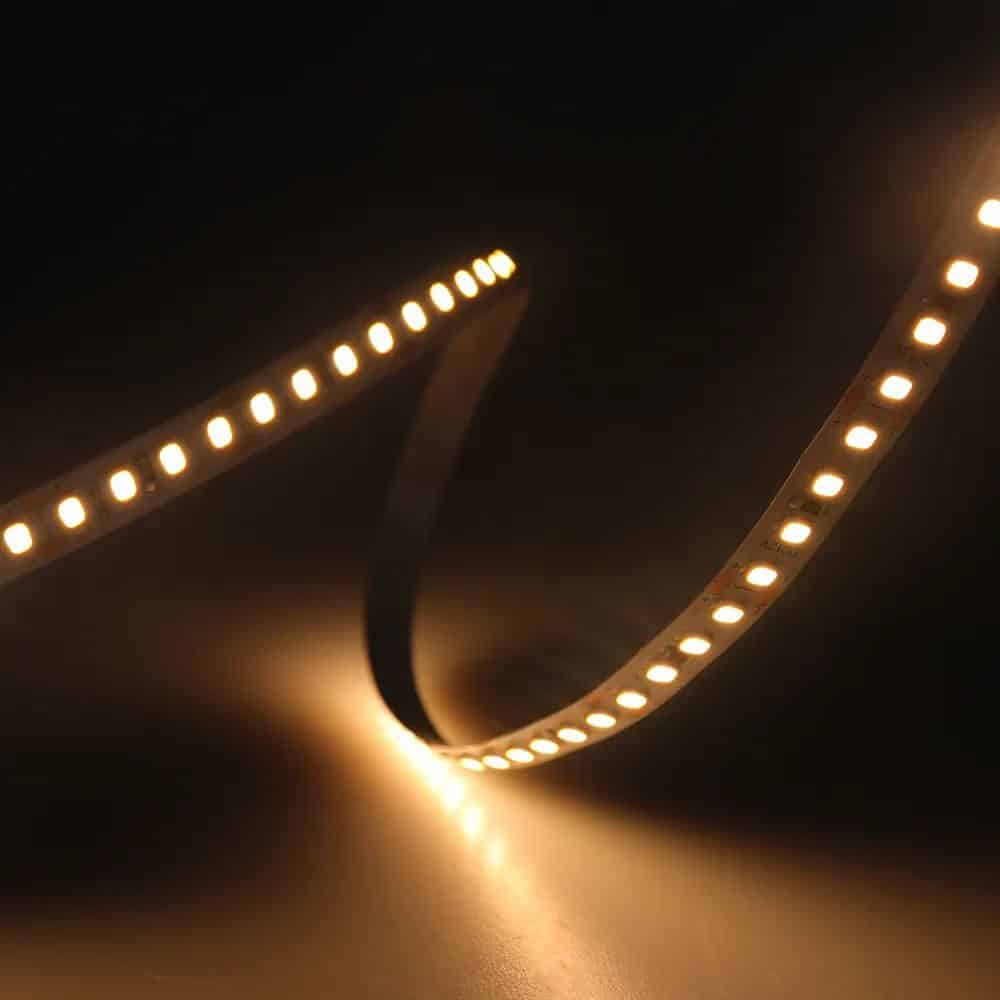

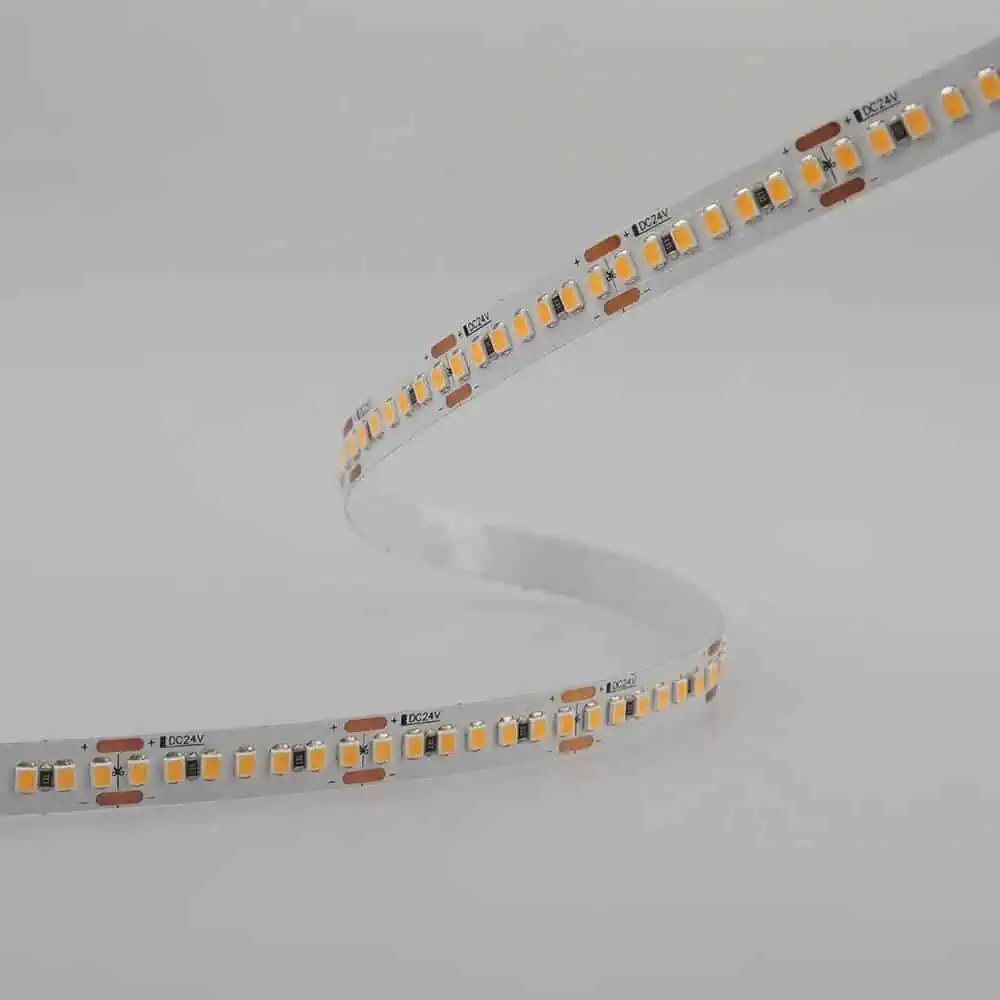

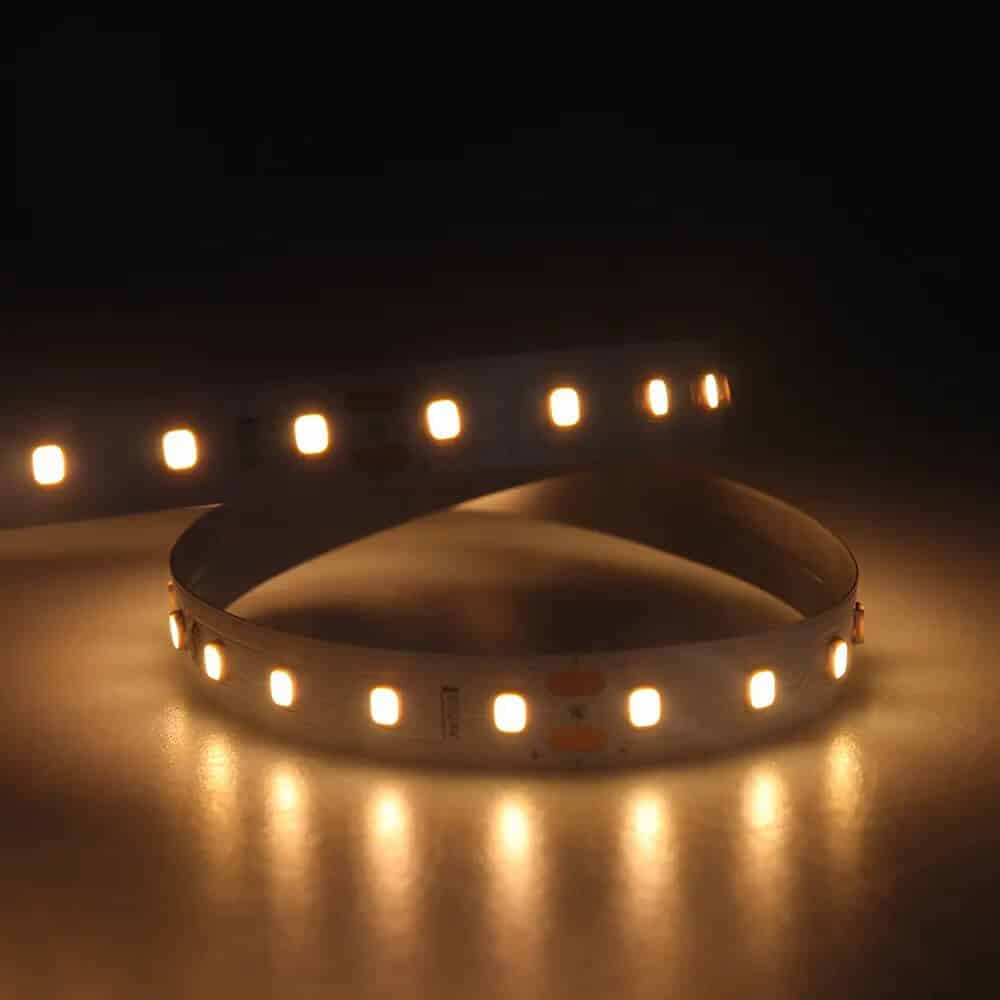

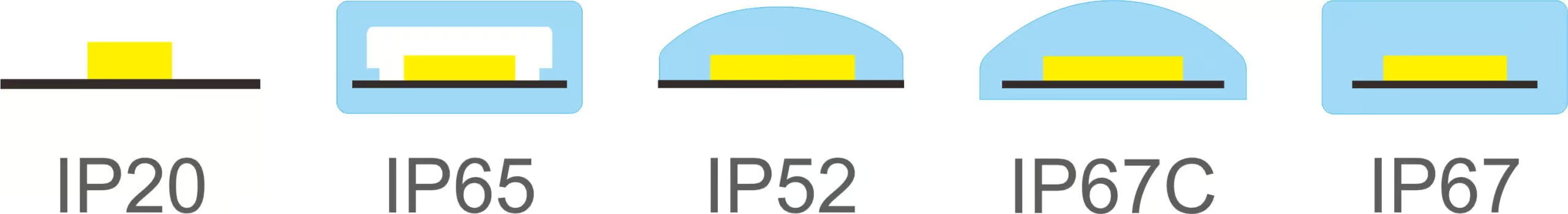

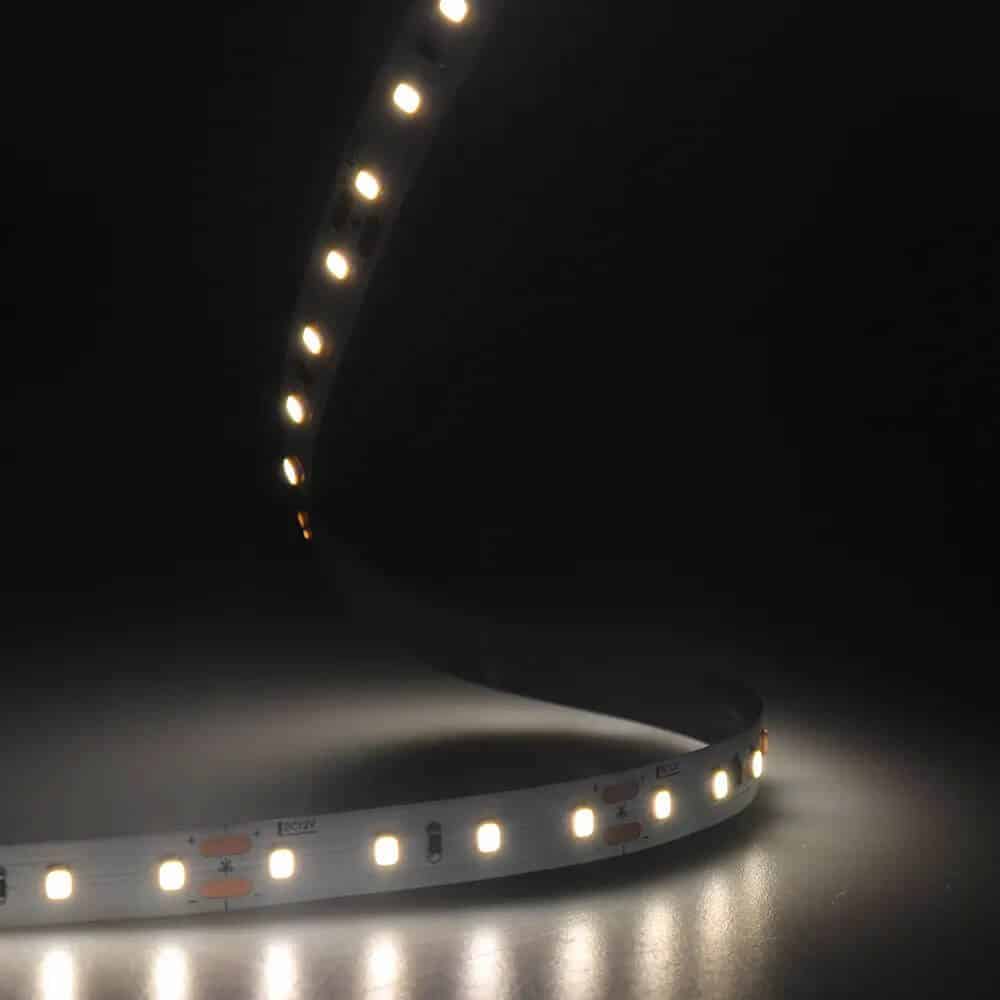

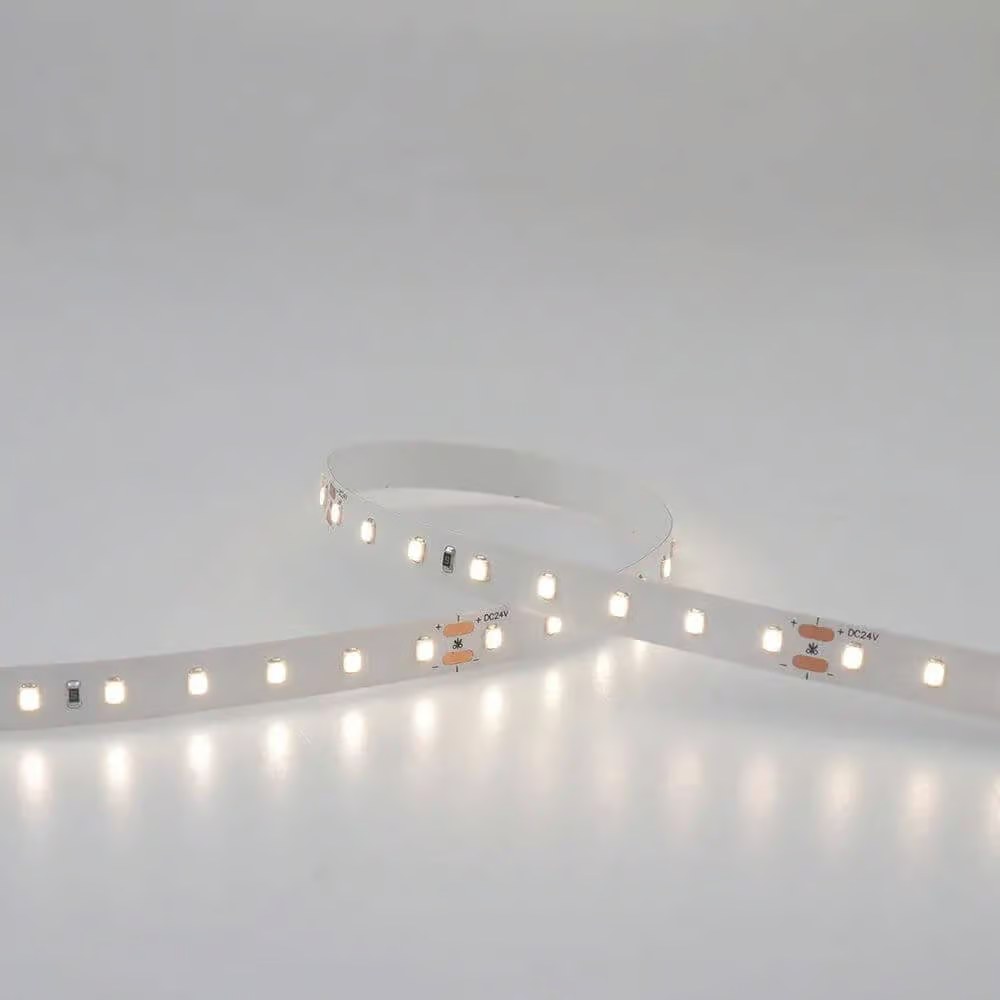

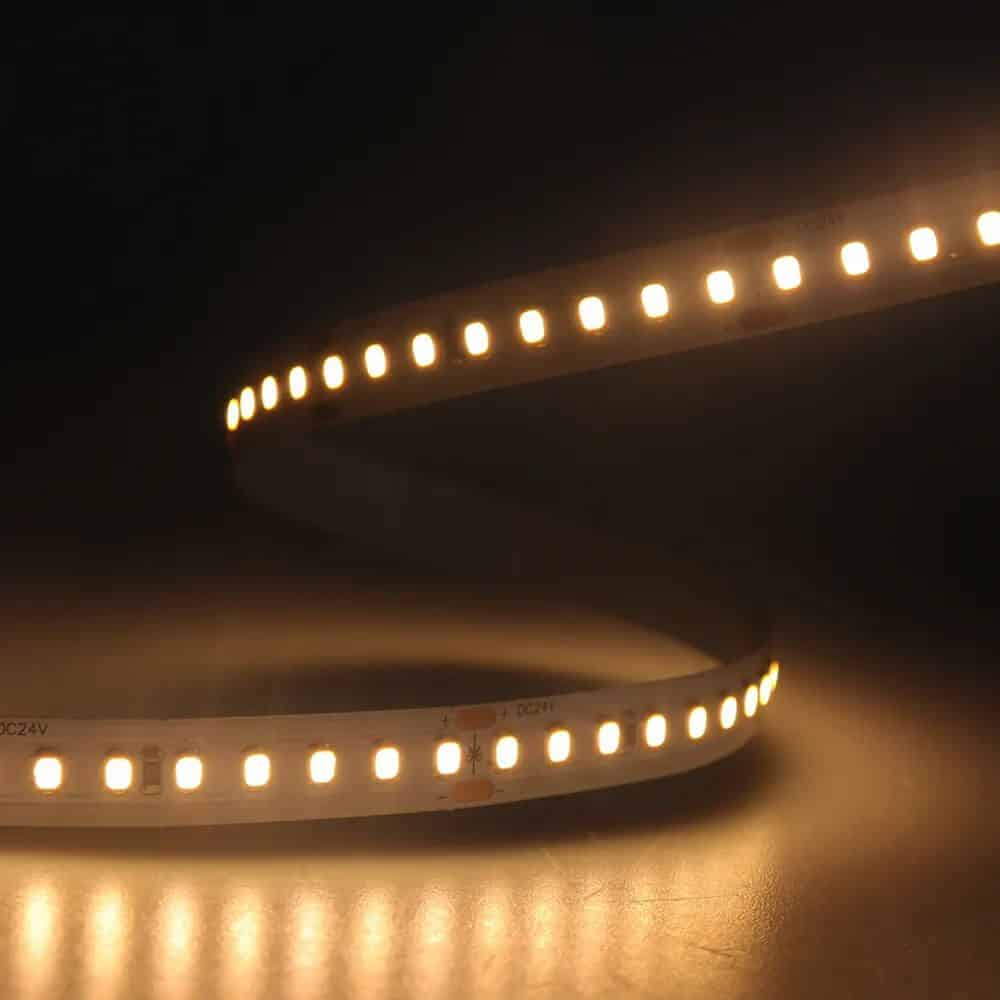

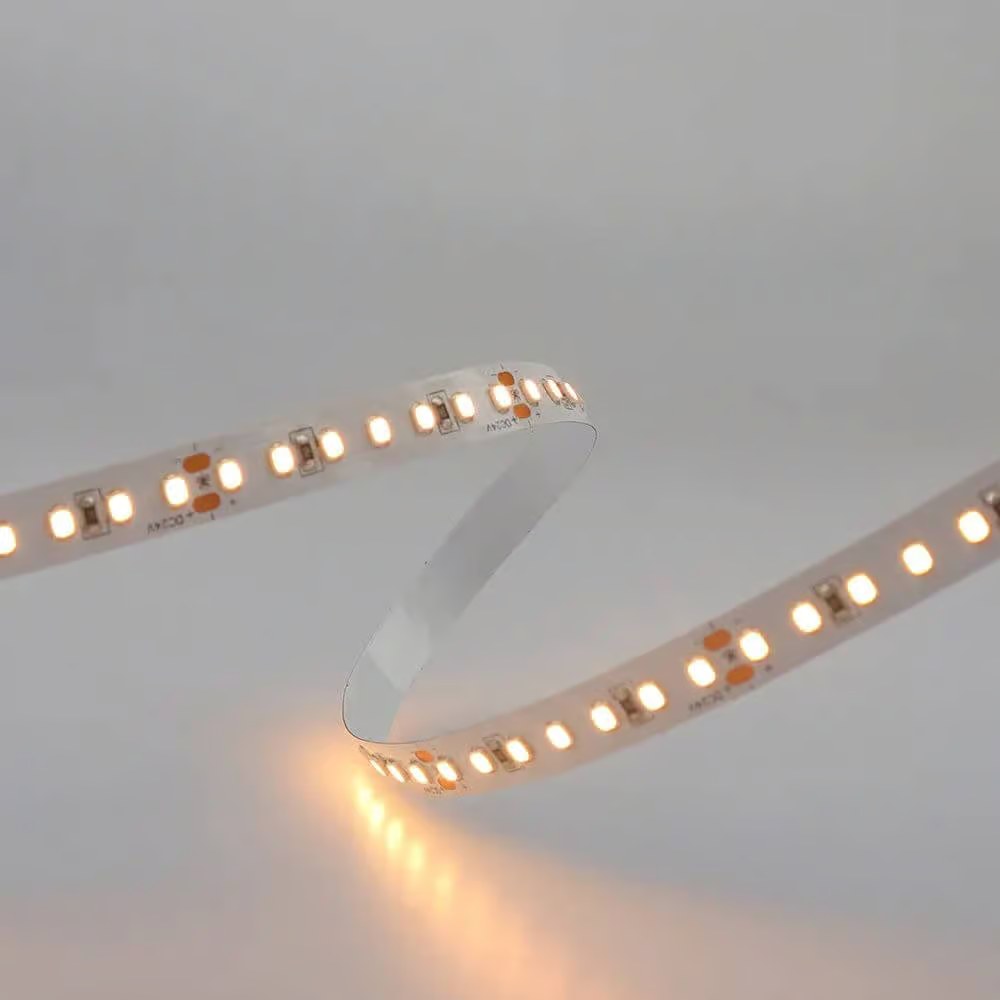

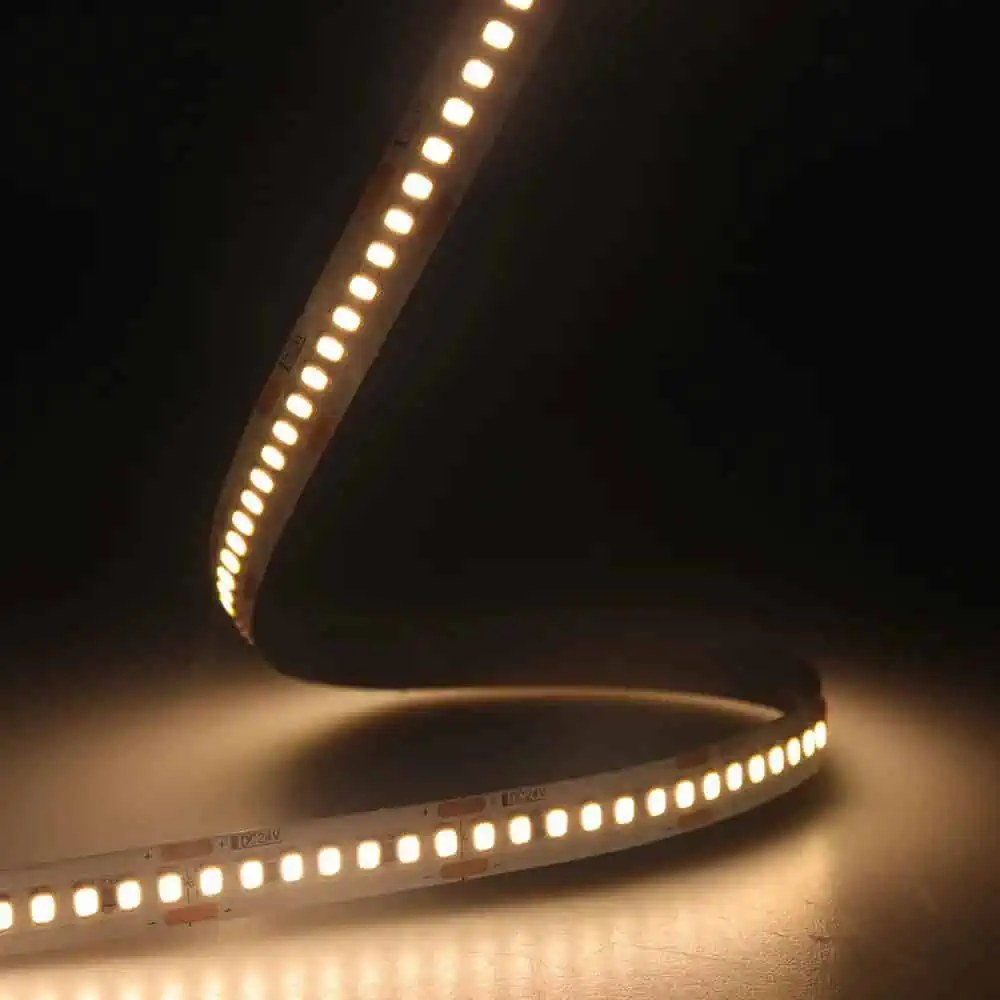

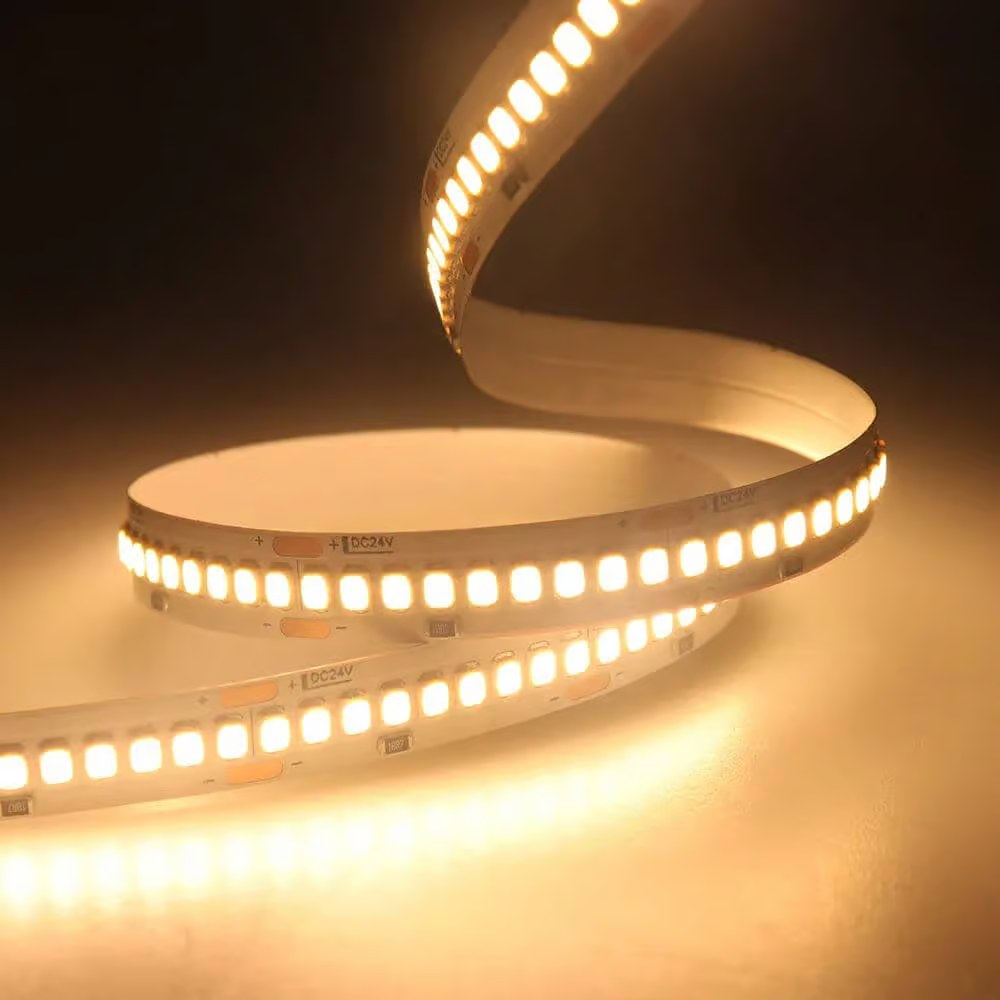

LEDYi are ready and have developed a range of LED strips that comply with the new ErP regulation, and they have a luminous efficiency of up to 184LM/W, and its energy efficiency class is C. By using the solid slicone extrusion process, the ErP led strip can be IP52, IP65, IP67. Please see the product range below:

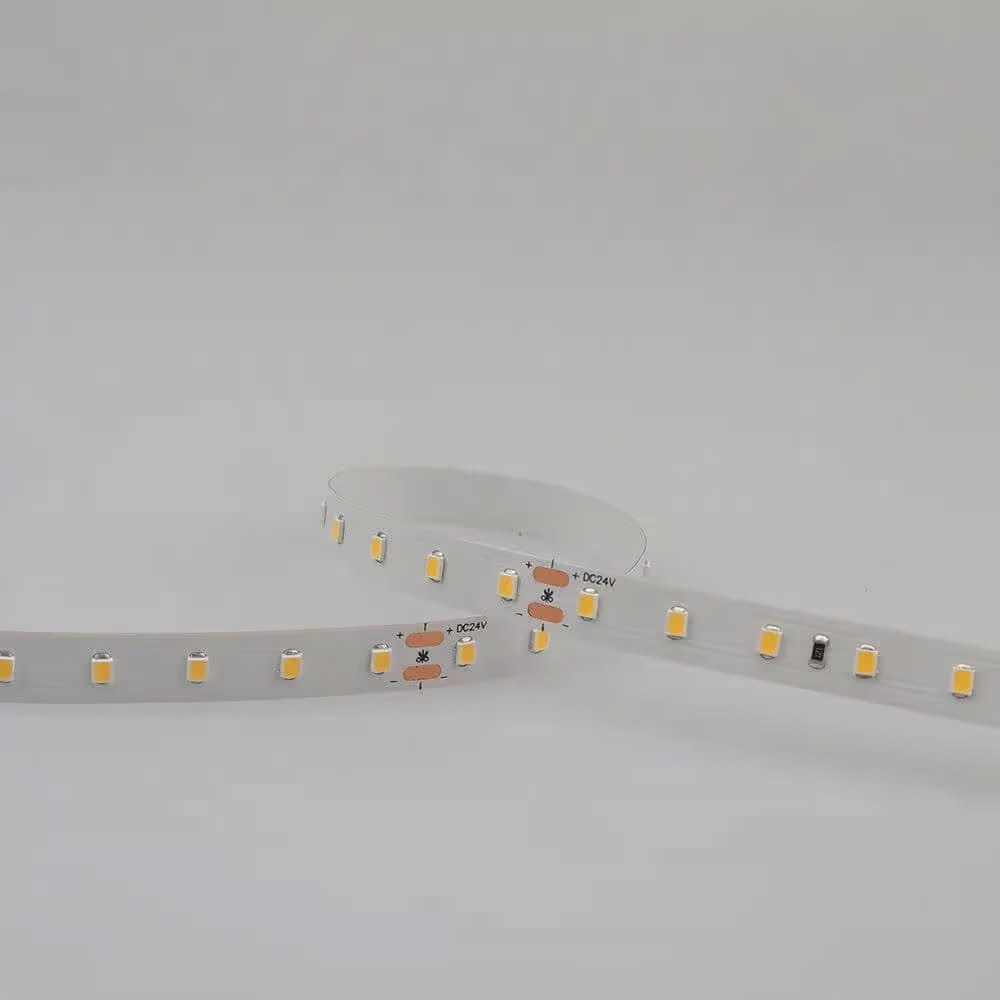

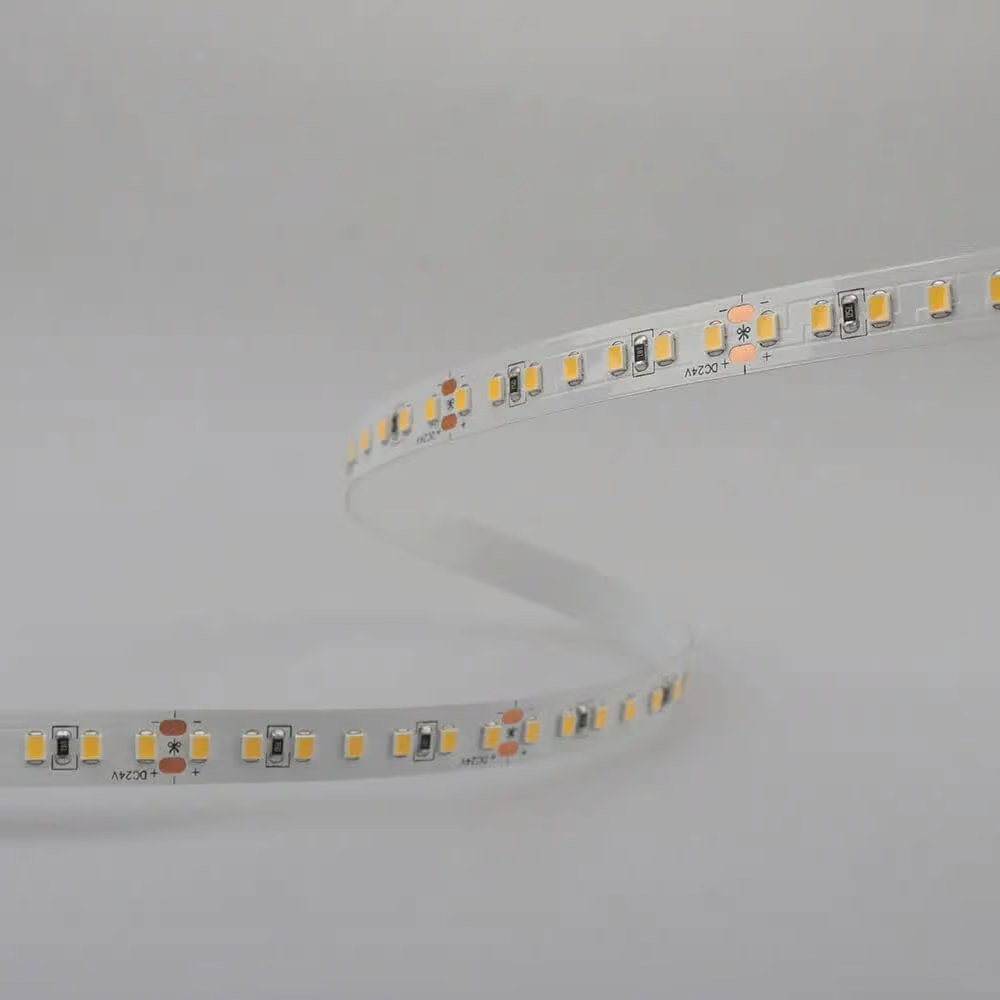

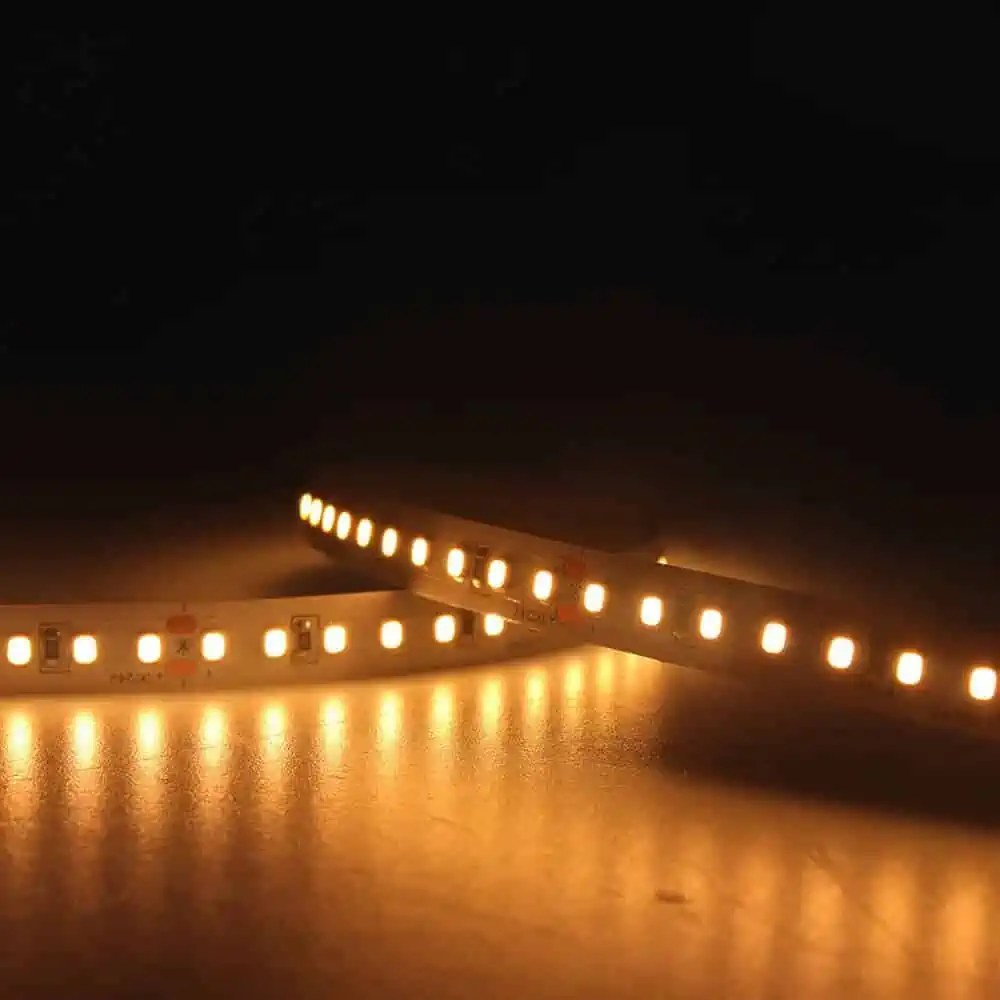

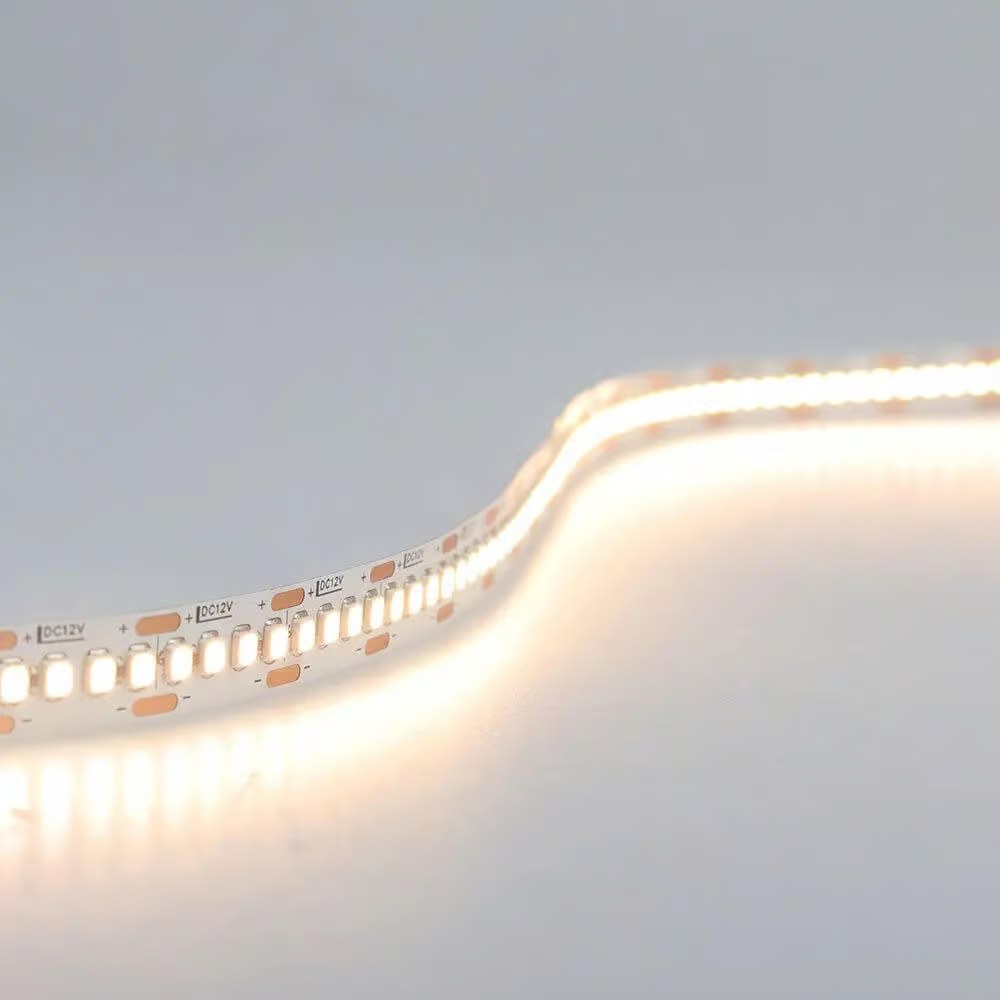

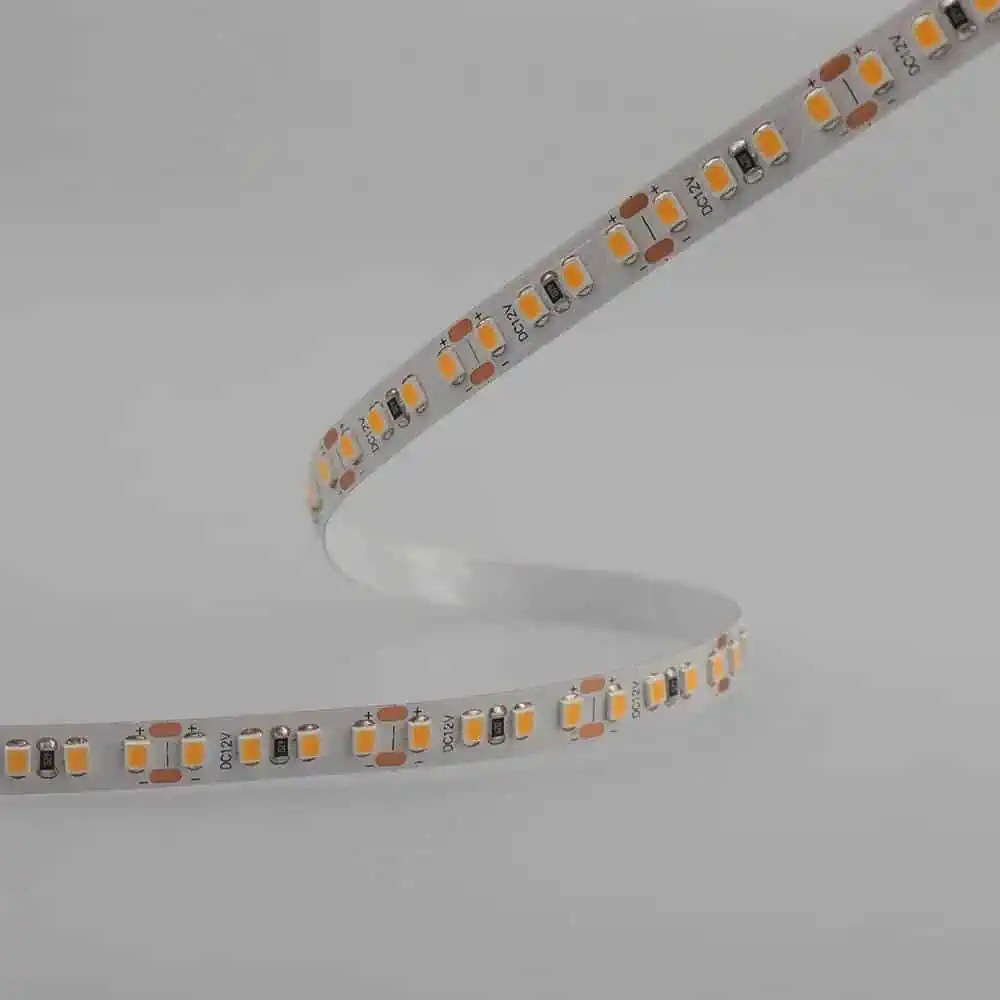

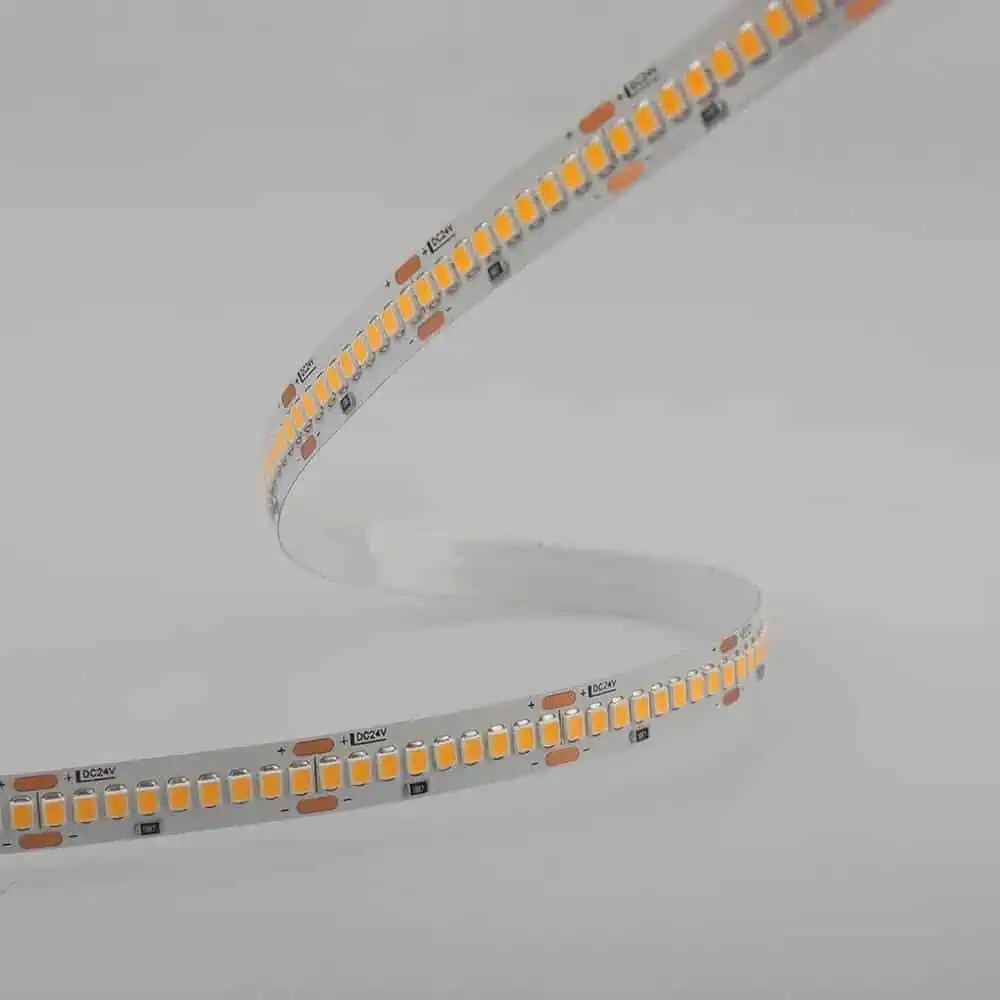

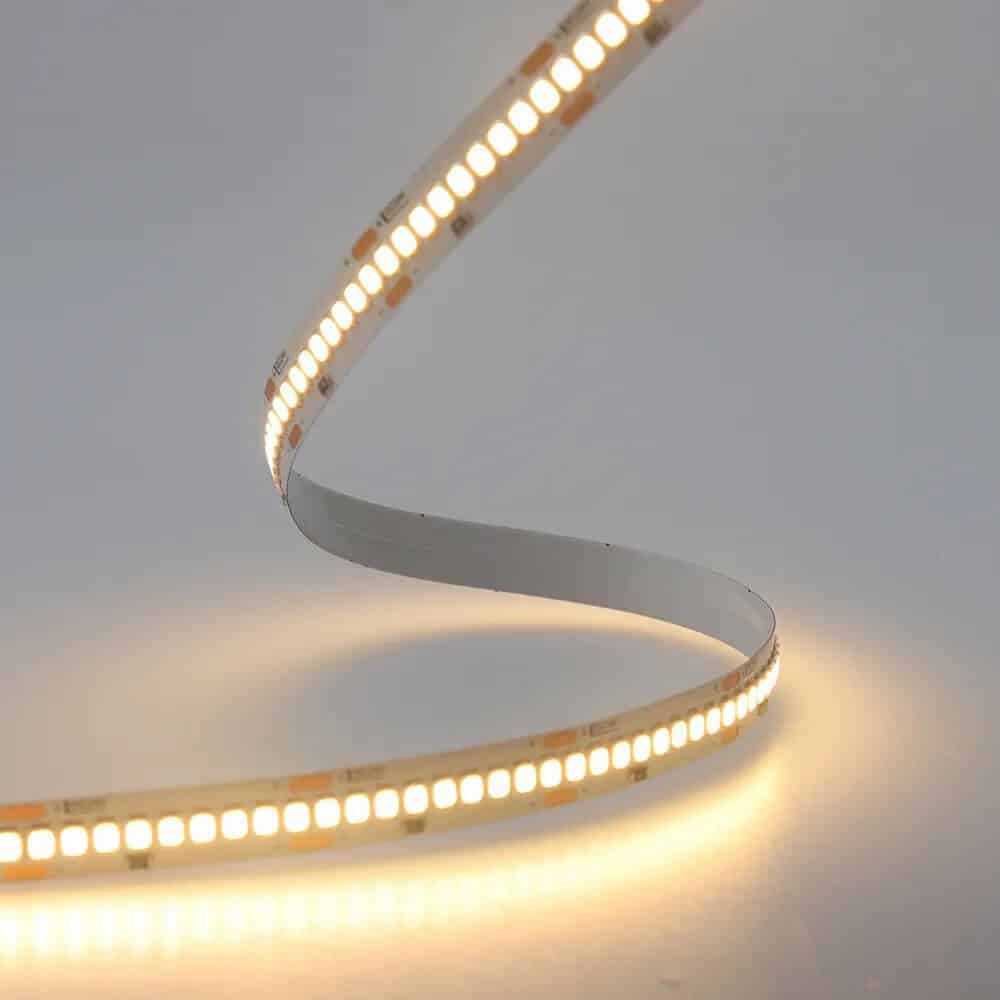

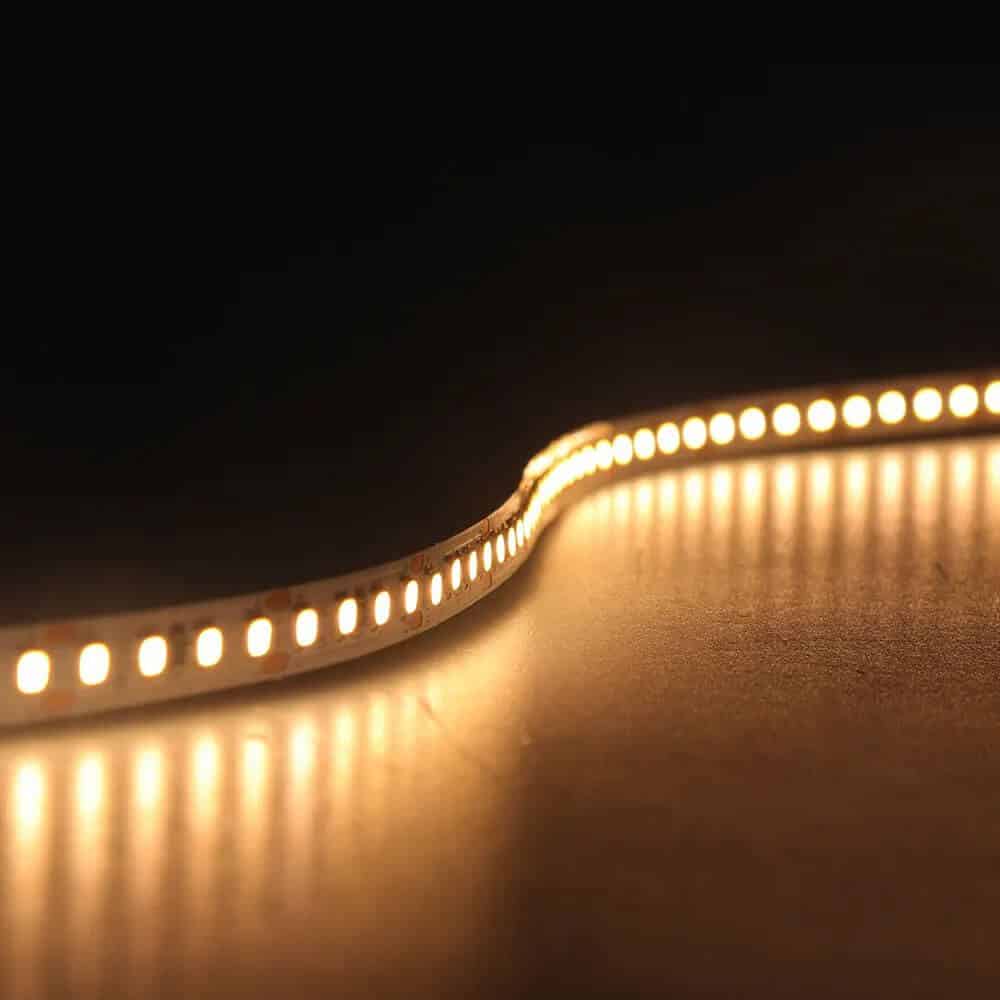

New ErP LED Strip IP20/IP65 Series

New ErP LED Strip IP52/IP67C/IP67 Series

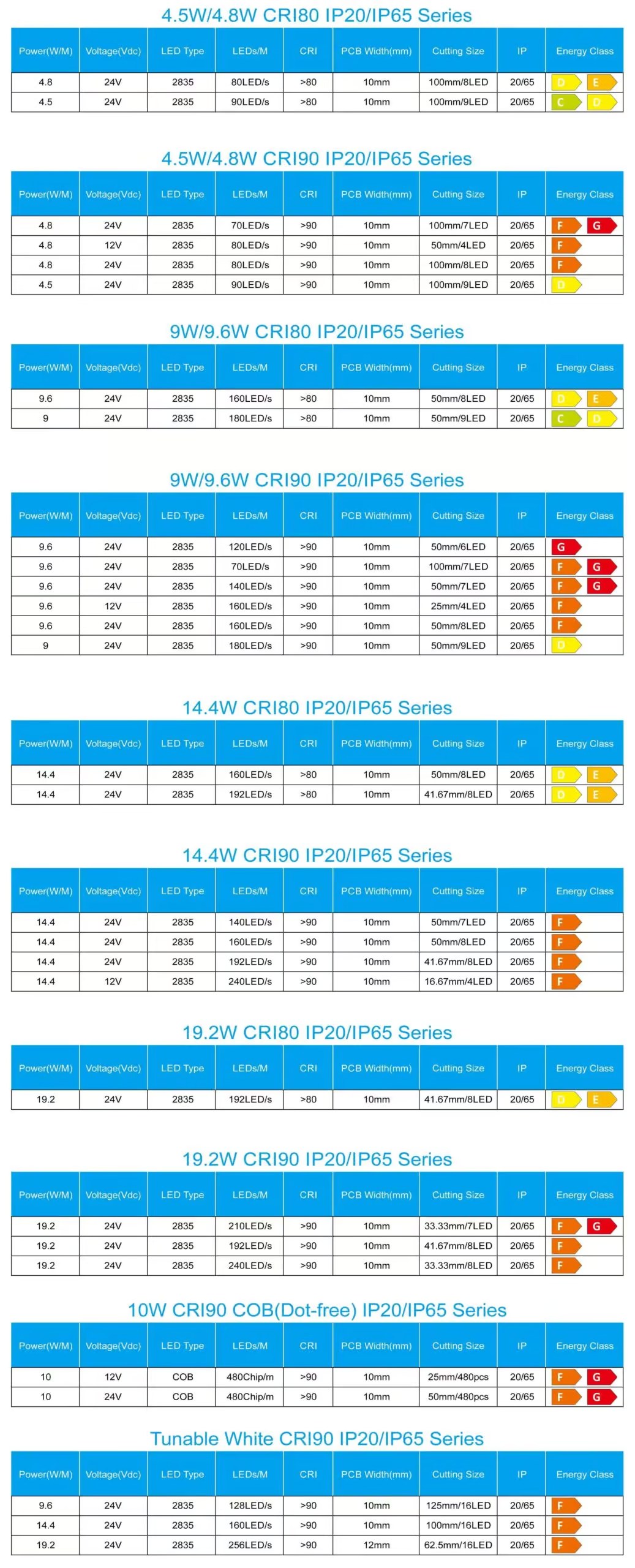

Specification (New ErP LED Strip IP20/IP65 Series​)

4.5W/4.8W CRI80 IP20/IP65 Series

4.5W/4.8W CRI90 IP20/IP65 Series

9W/9.6W CRI80 IP20/IP65 Series

9W/9.6W CRI90 IP20/IP65 Series

14.4W CRI80 IP20/IP65 Series

14.4W CRI90 IP20/IP65 Series

19.2W CRI80 IP20/IP65 Series

19.2W CRI90 IP20/IP65 Series

10W CRI90 COB(Dot-free) IP20/IP65 Series

Tunable White CRI90 IP20/IP65 Series

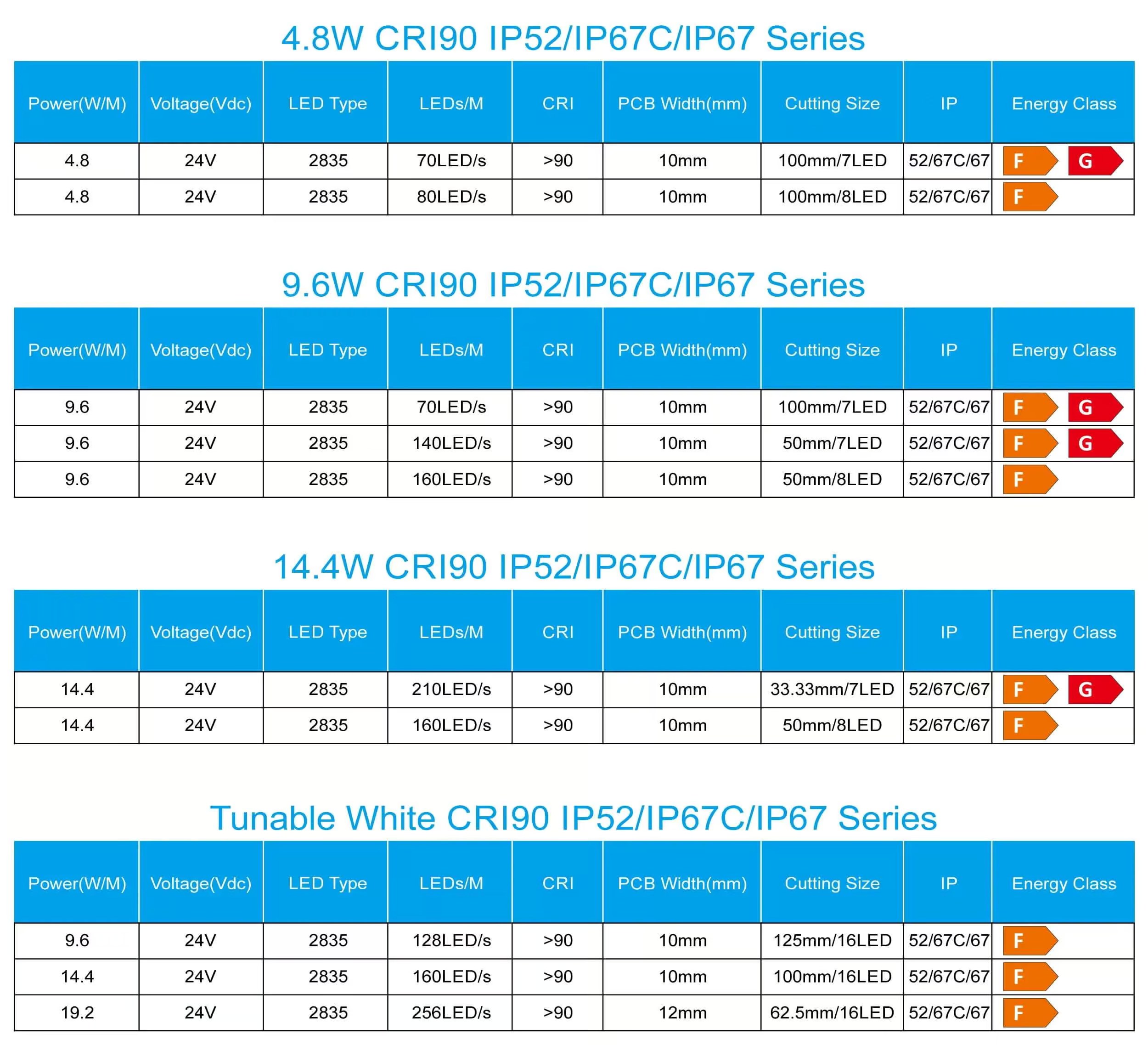

Specification (New ErP LED Strip IP52/IP67C/IP67 Series)

4.8W CRI90 IP52/IP67C/IP67 Series

9.6W CRI90 IP52/IP67C/IP67 Series

14.4W CRI90 IP52/IP67C/IP67 Series

Tunable White CRI90 IP52/IP67C/IP67 Series

Test Report (New ErP LED Strip IP20/IP65 Series​)

4.5W/4.8W CRI80 IP20/IP65 Series

4.5W/4.8W CRI90 IP20/IP65 Series

9W/9.6W CRI80 IP20/IP65 Series

9W/9.6W CRI90 IP20/IP65 Series

14.4W CRI80 IP20/IP65 Series

14.4W CRI90 IP20/IP65 Series

19.2W CRI80 IP20/IP65 Series

19.2W CRI90 IP20/IP65 Series

10W CRI90 COB(Dot-free) IP20/IP65 Series

Tunable White CRI90 IP20/IP65 Series

Test Report (New ErP LED Strip IP52/IP67C/IP67 Series)

4.8W CRI90 IP52/IP67C/IP67 Series

9.6W CRI90 IP52/IP67C/IP67 Series

14.4W CRI90 IP52/IP67C/IP67 Series

Tunable White CRI90 IP52/IP67C/IP67 Series

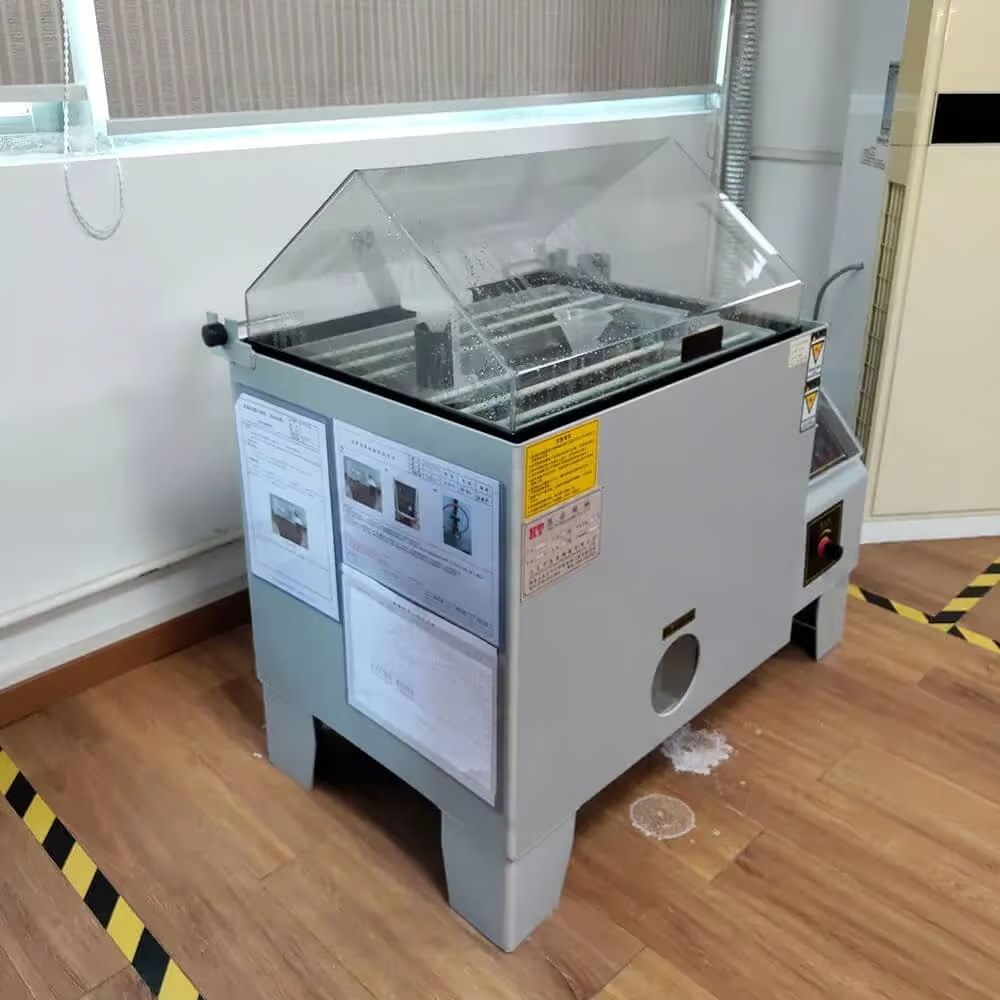

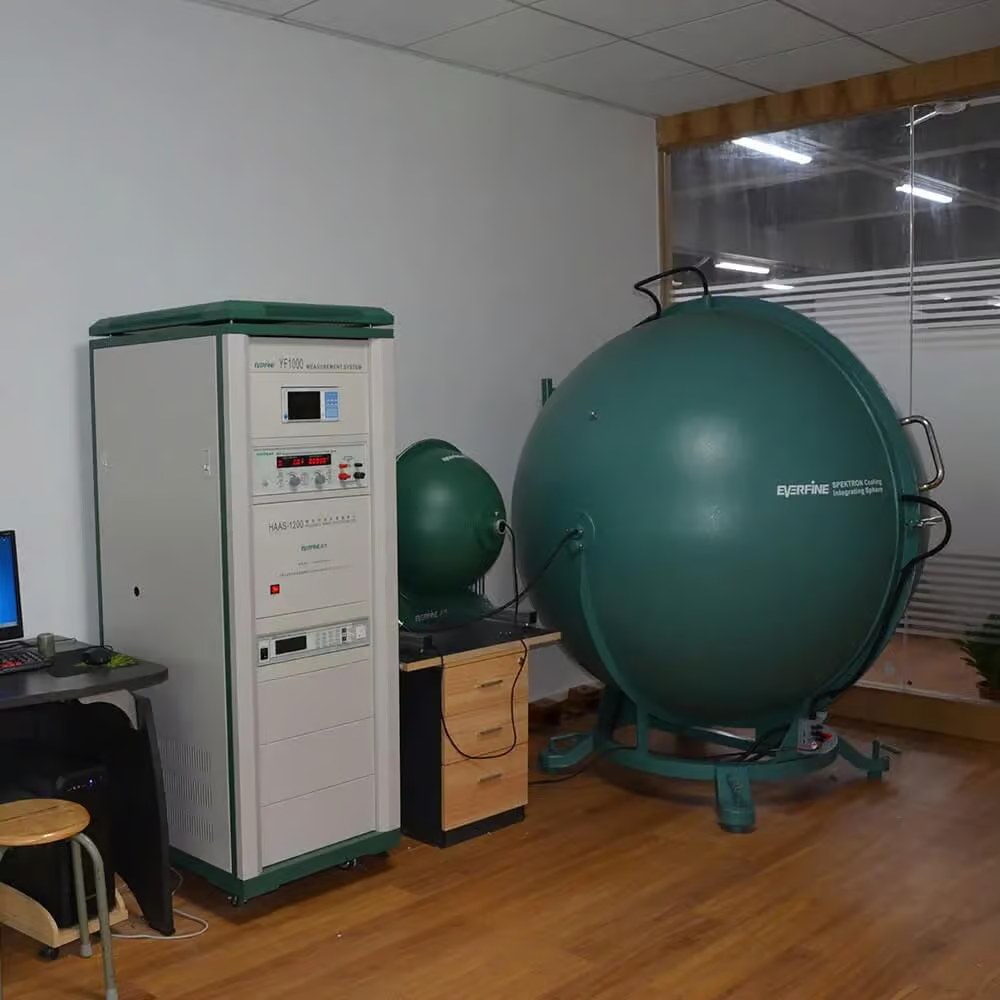

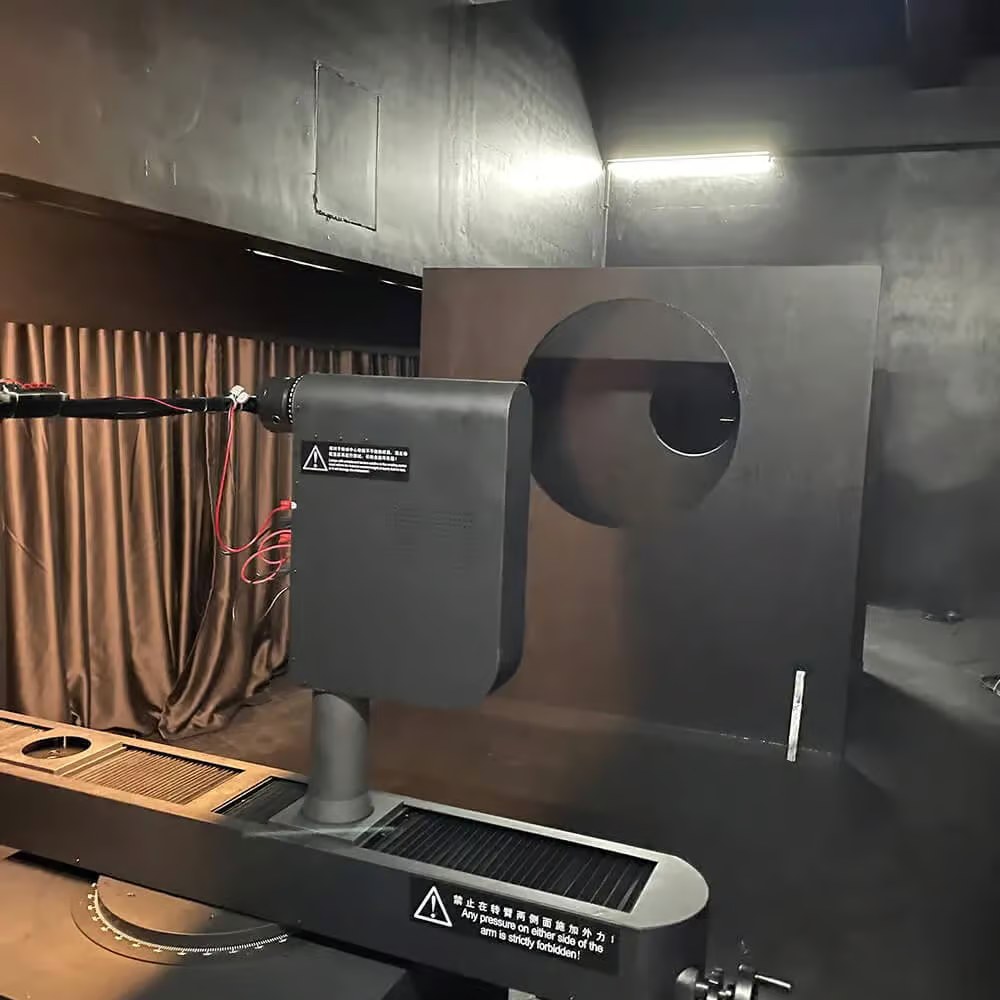

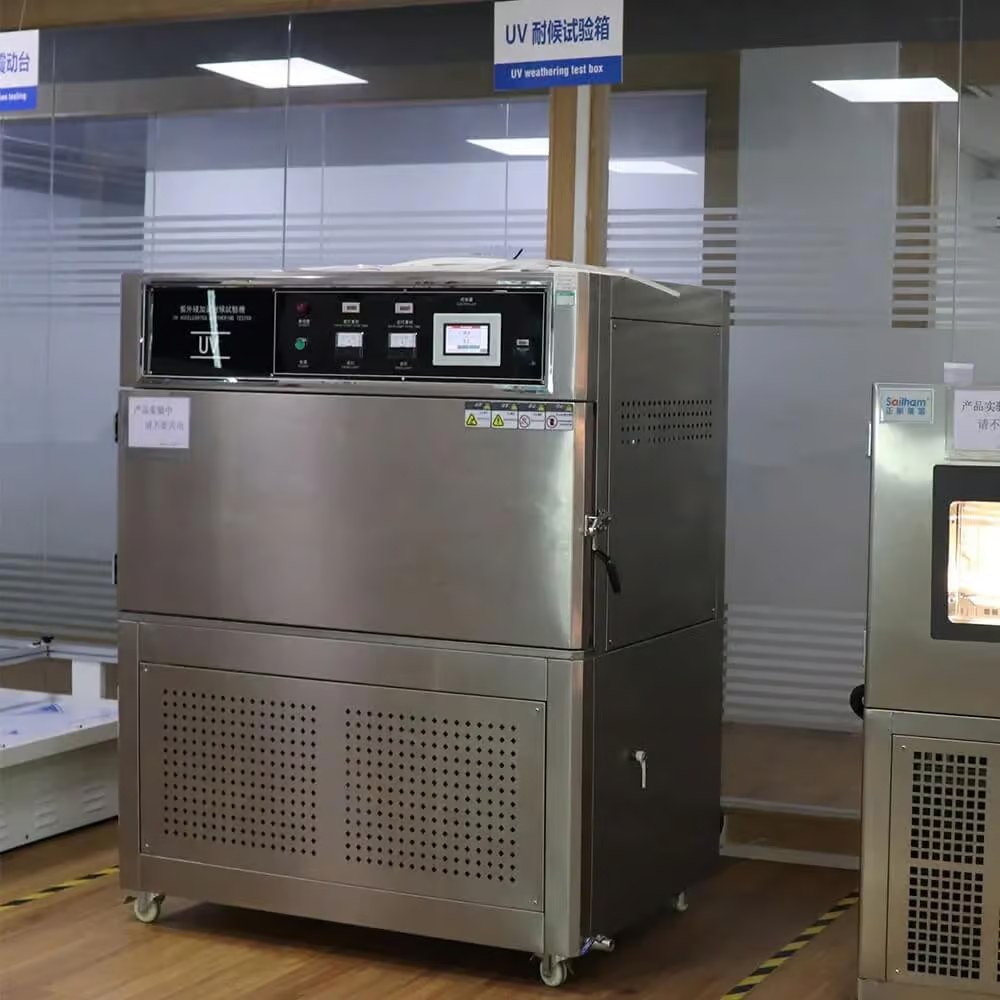

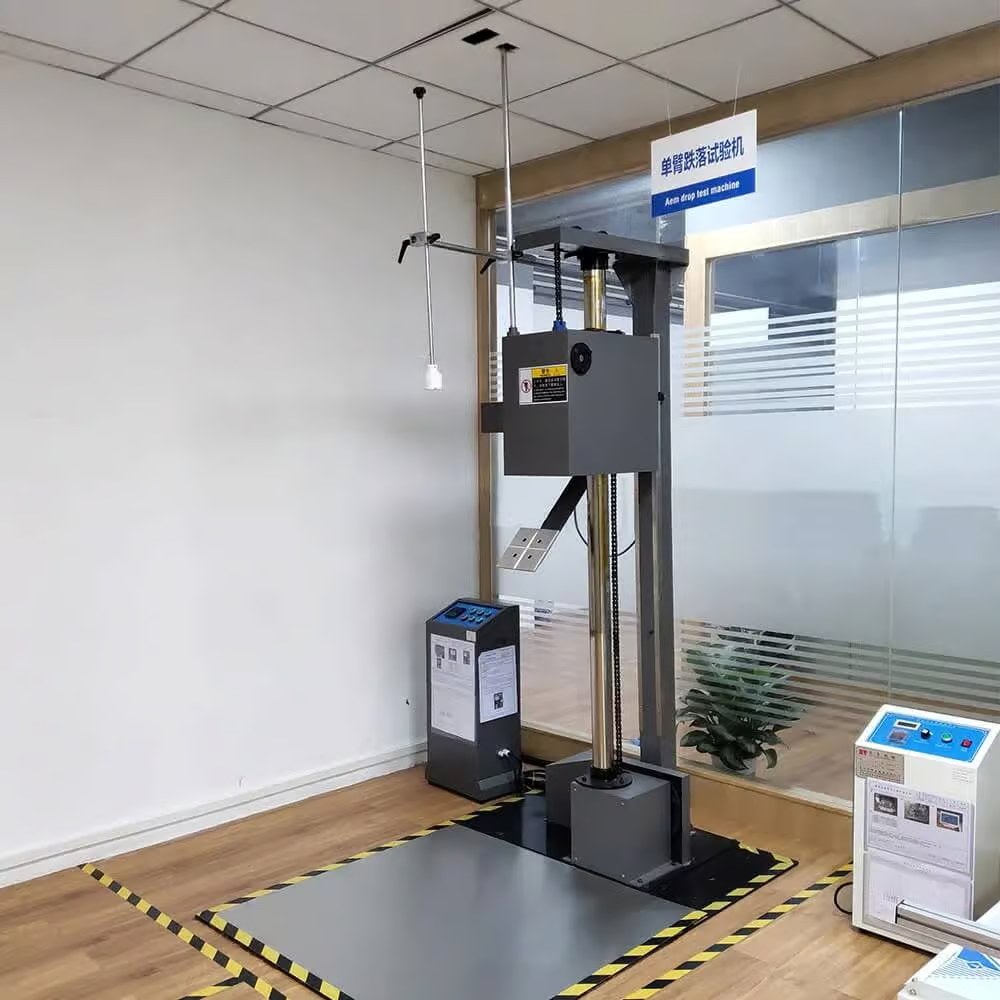

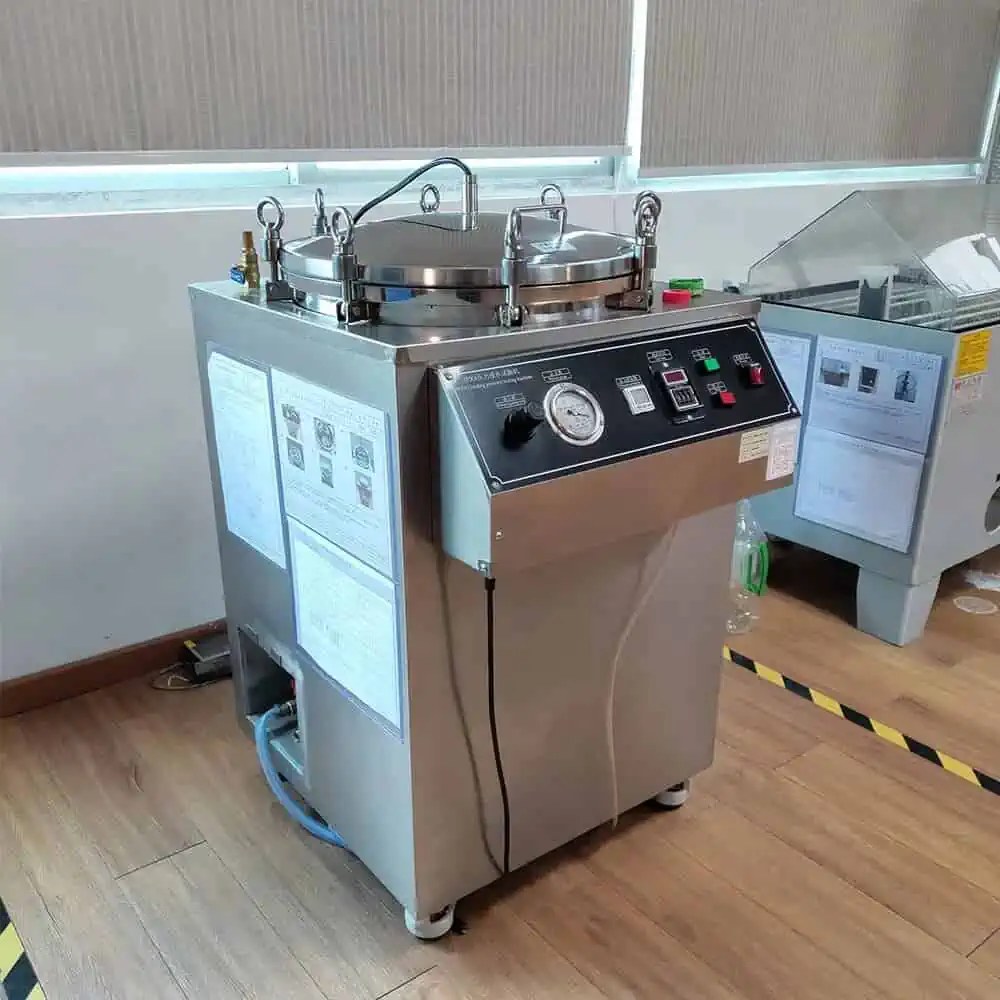

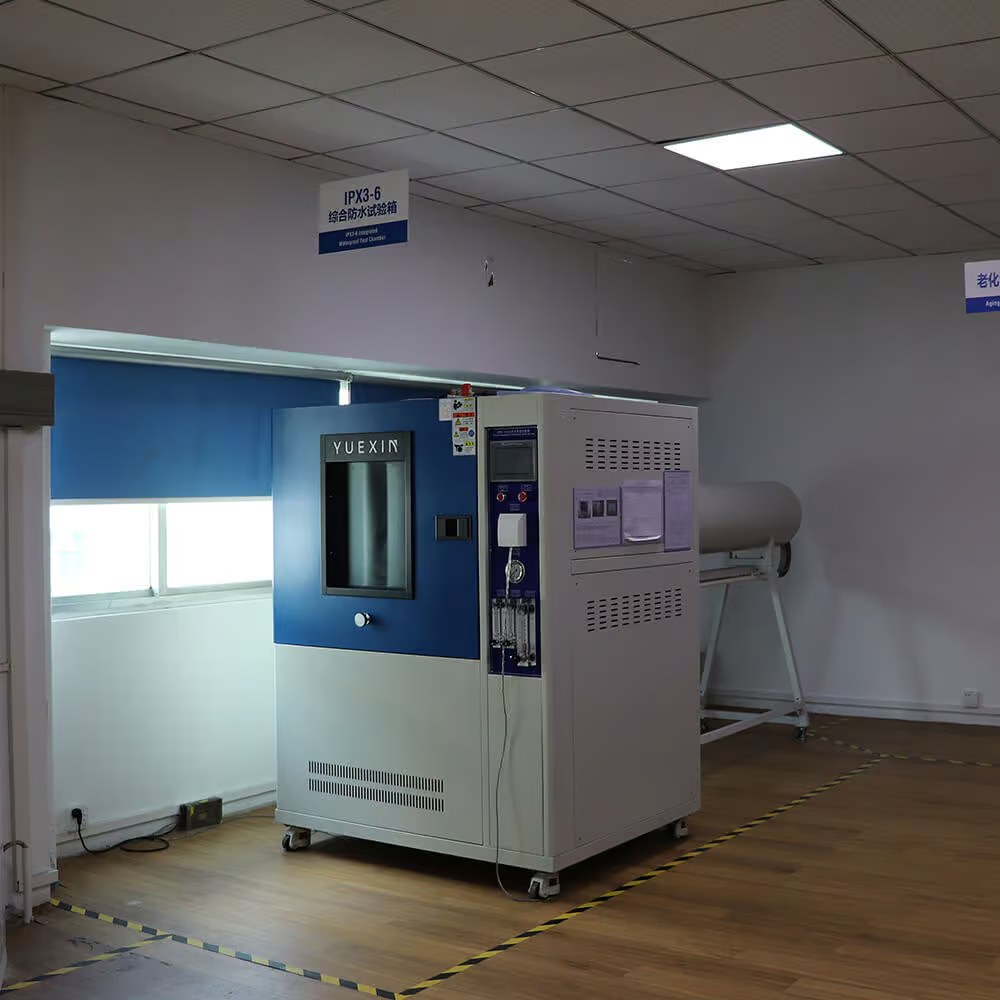

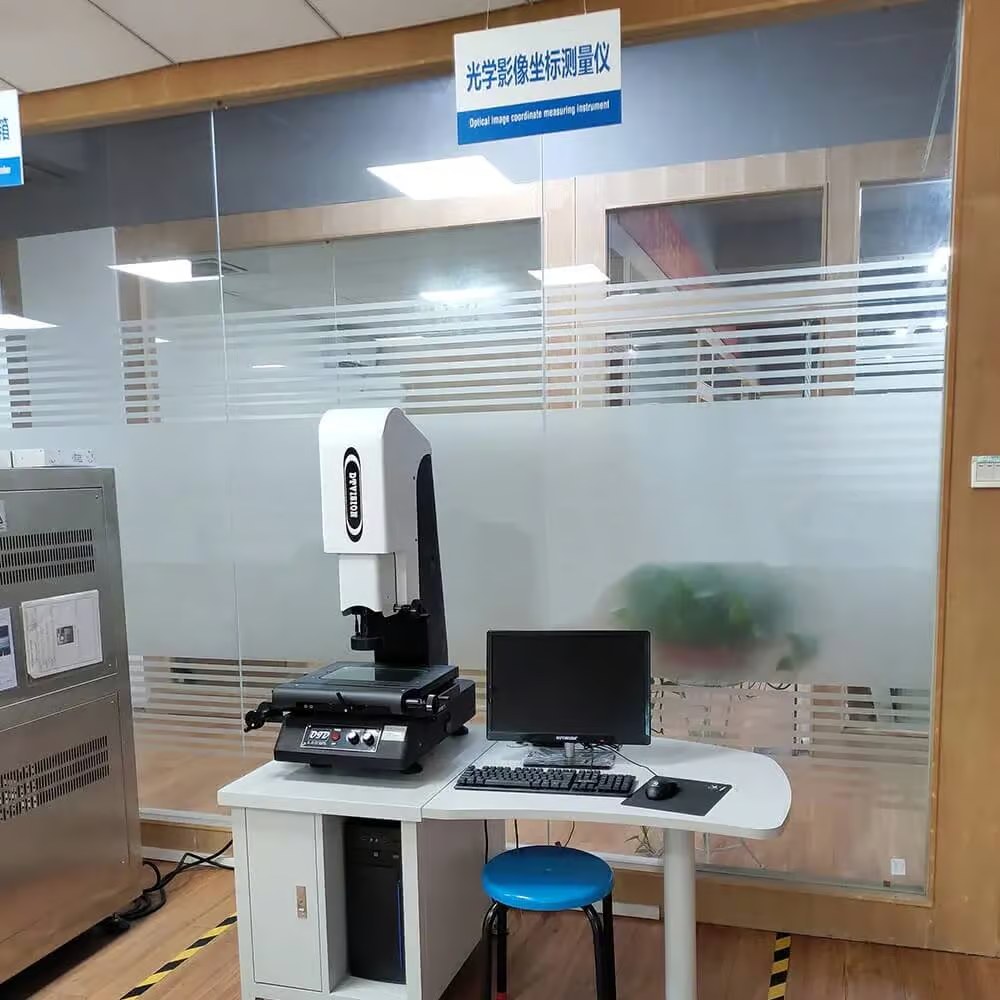

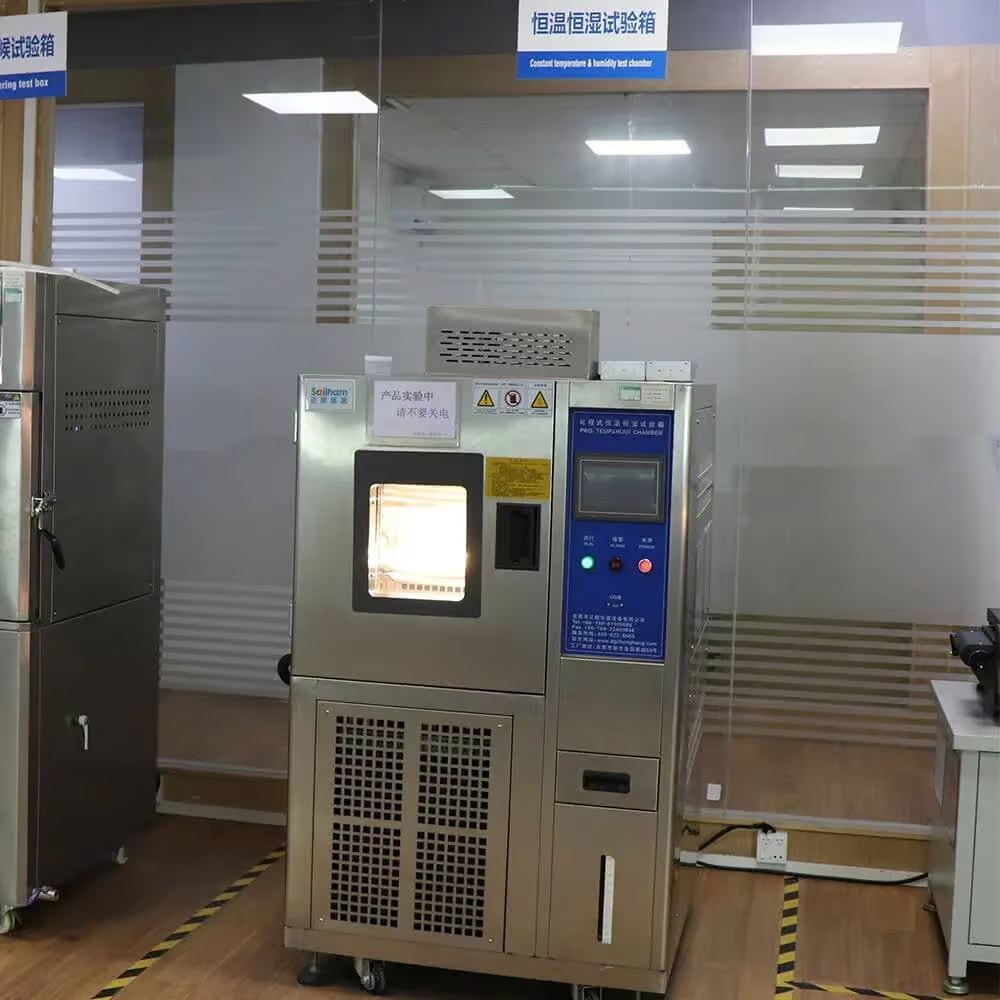

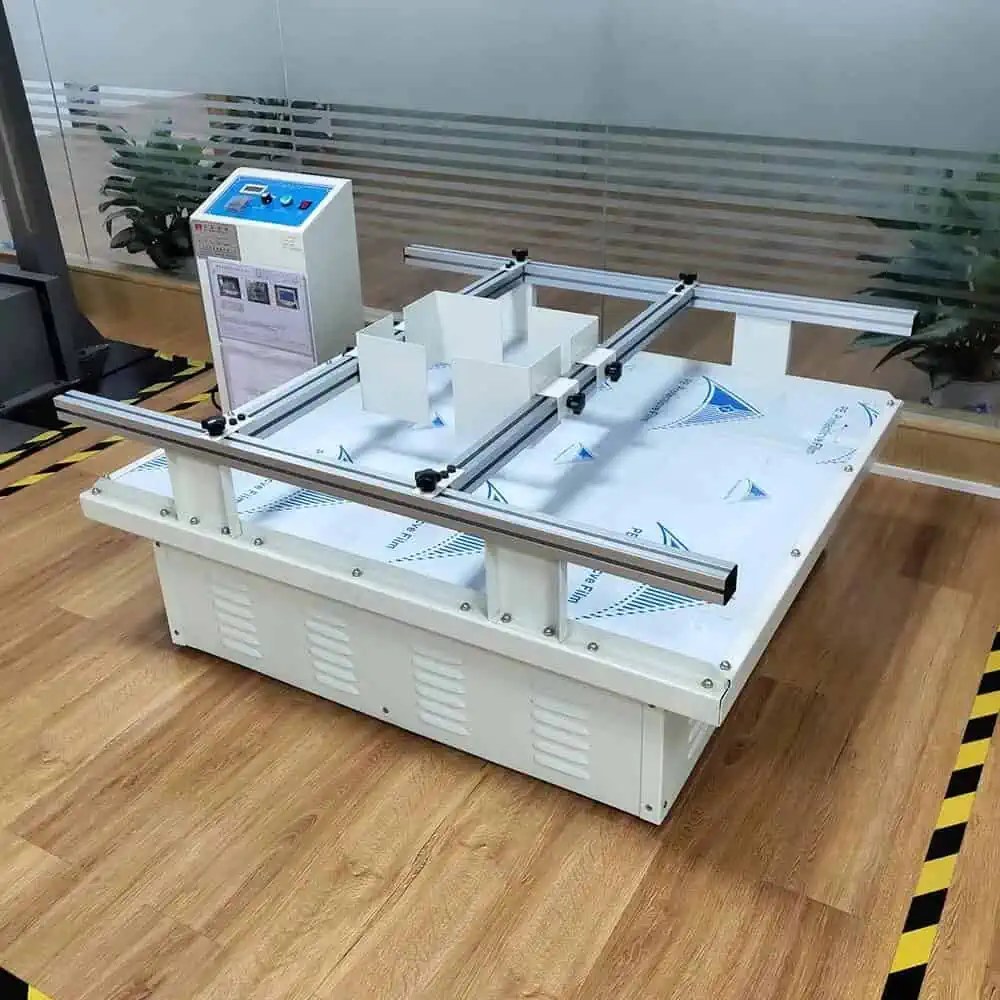

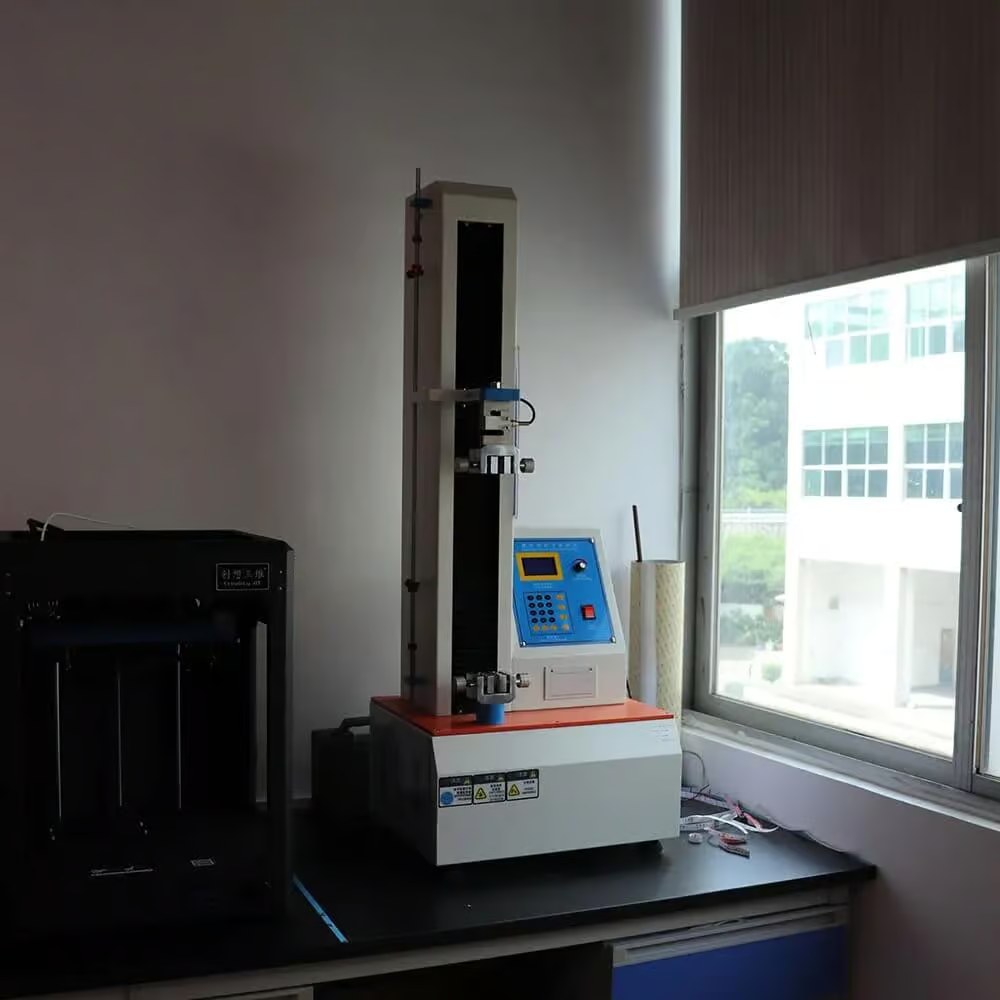

Product Testing

All of our new ErP directive led strip lights are not mass-produced until they have gone through multiple rigorous testing steps in our laboratory equipment. This ensures high performance and stability and the product’s long life.

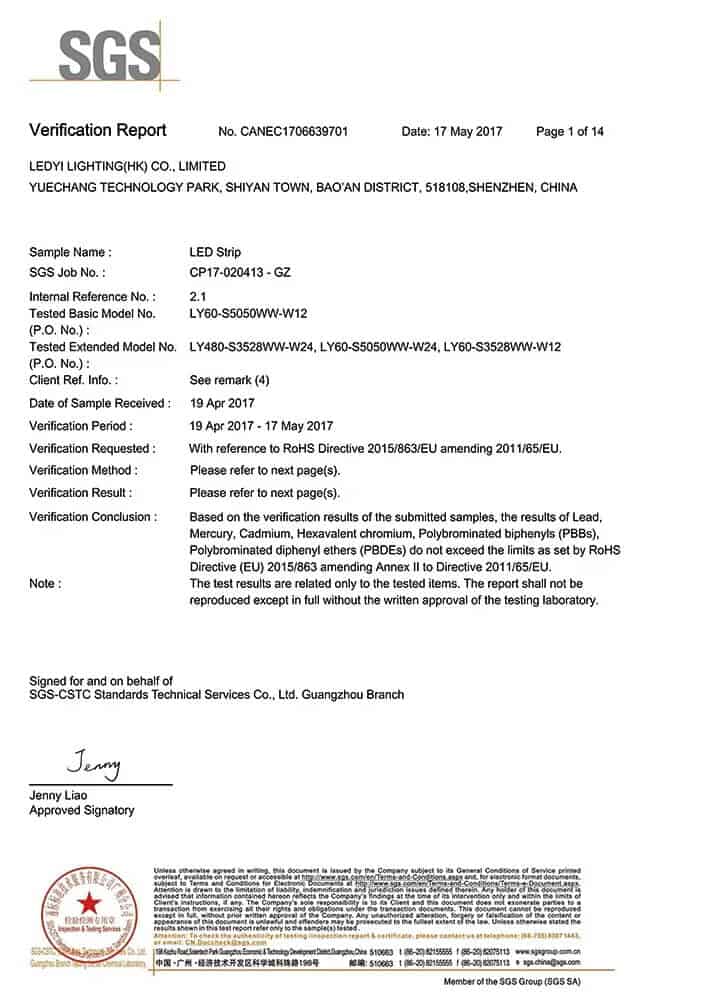

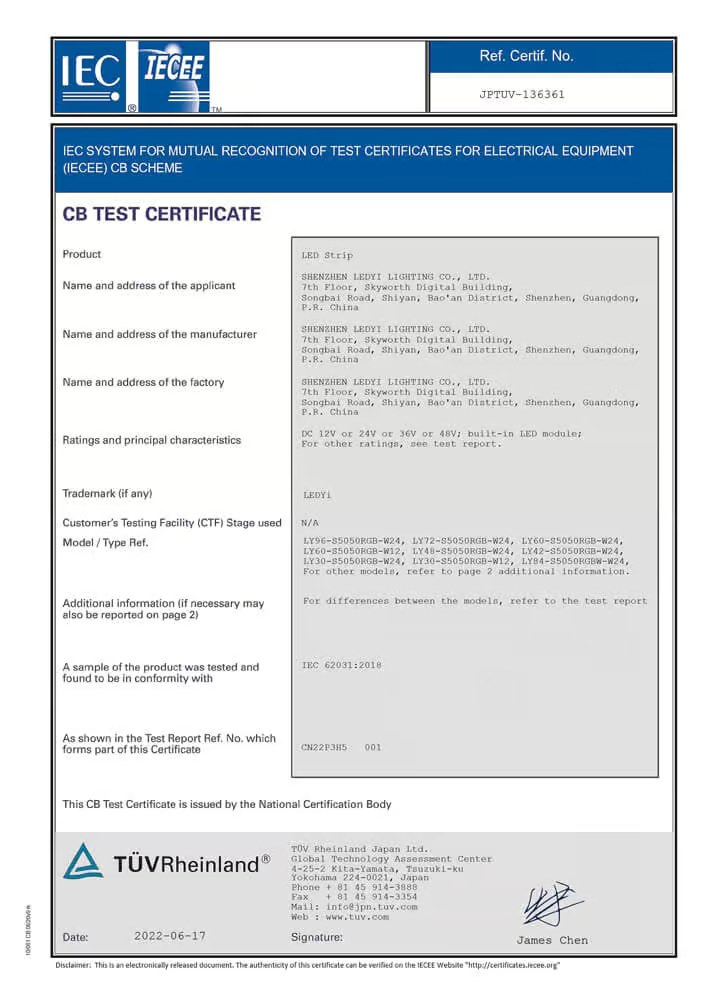

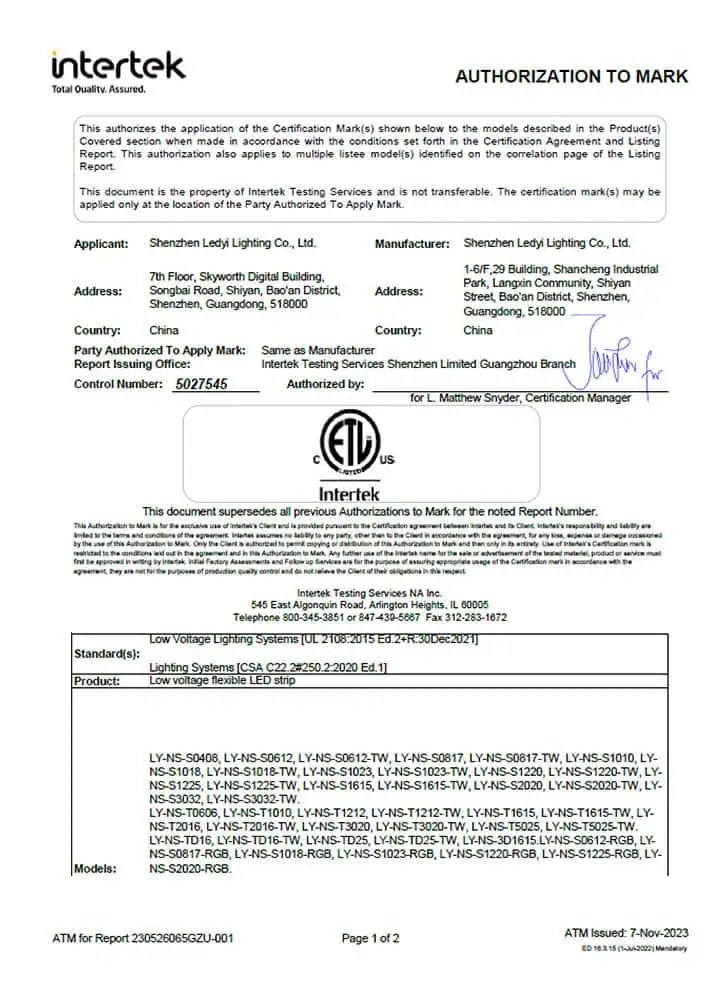

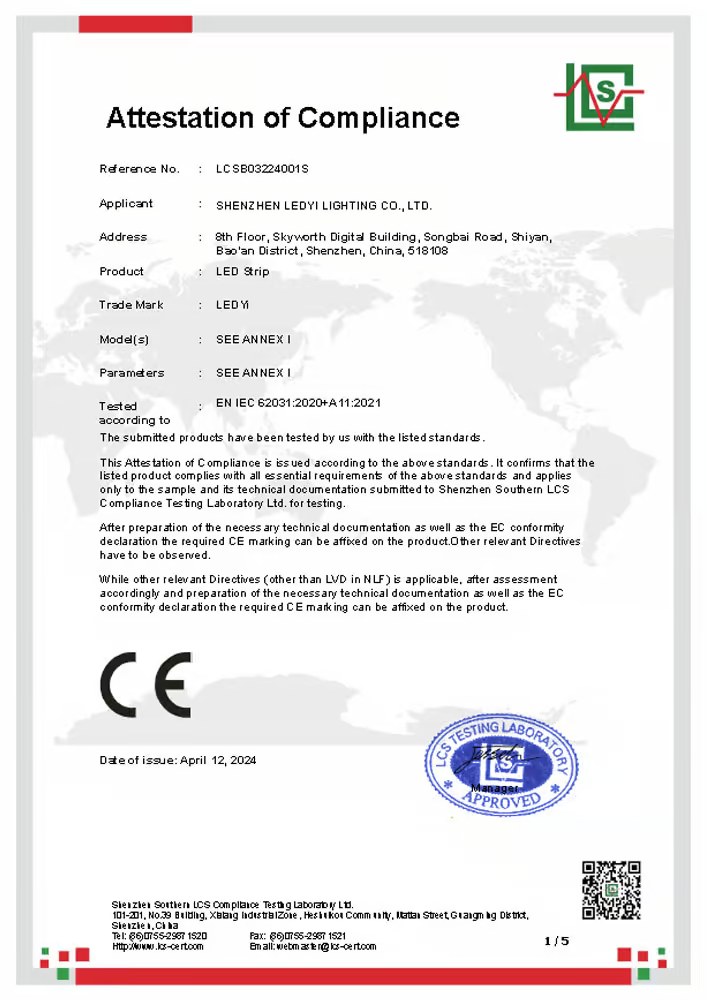

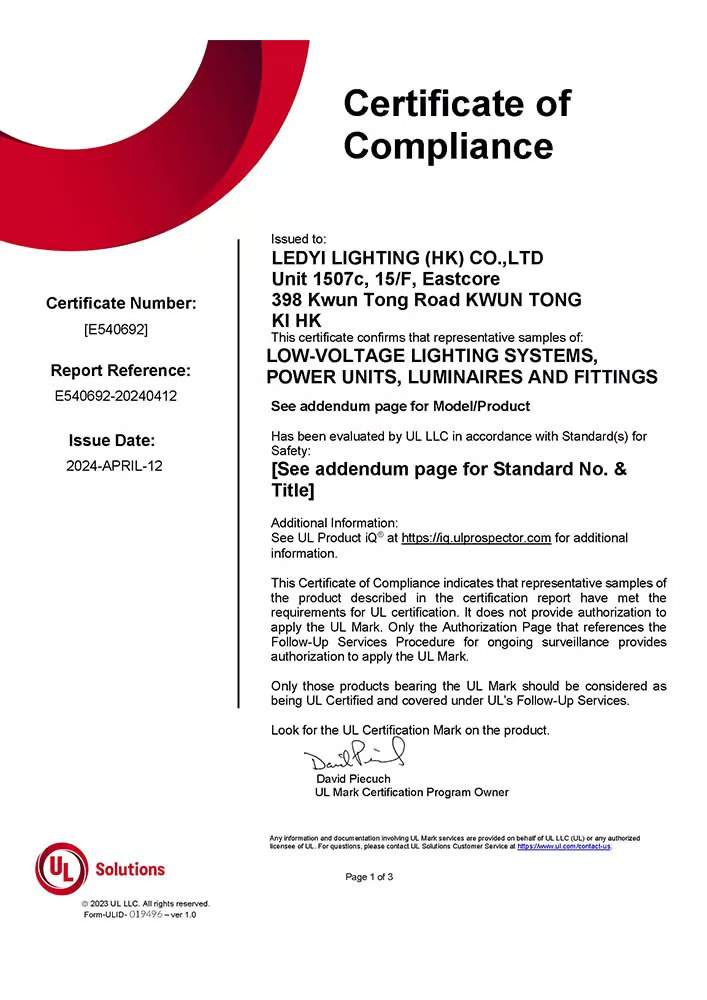

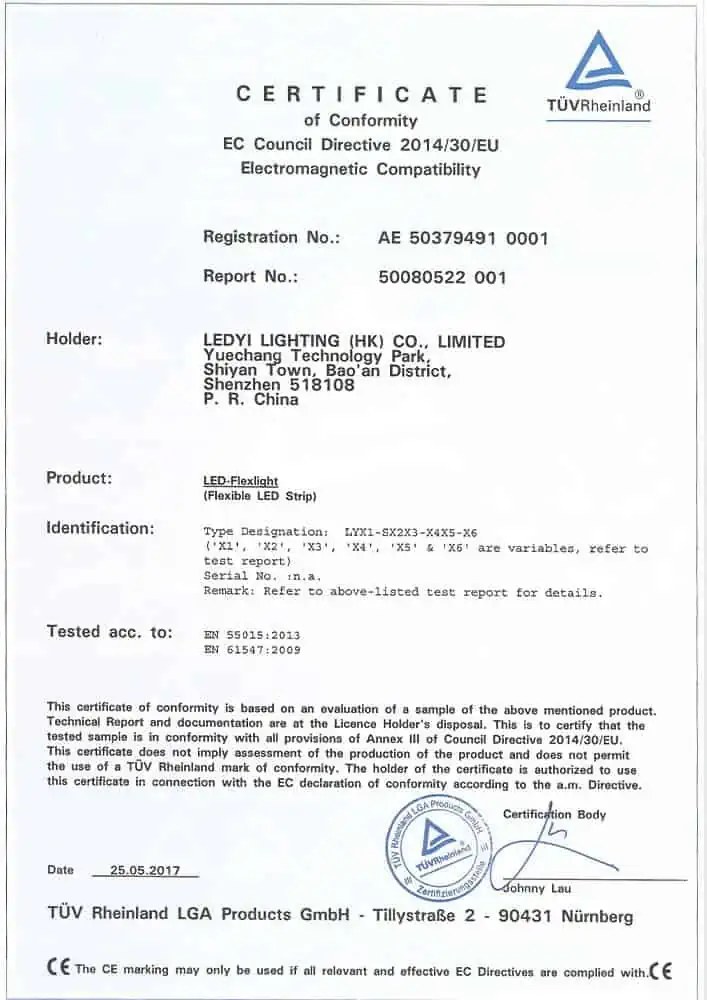

Certification

We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their new ErP directive led tape lights are safe and of the highest quality. To ensure the best performance, all our new ErP led tape lights have passed CE, RoHS certificates.

Why Wholesale New ErP regulations From LEDYi

LEDYi is one of the leading led strip lights manufacturers in China. We supply popular new ErP directive led tape lights such as smd2835 led strip, smd2010 led strip, cob led strip, smd1808 led strip and led neon flex, etc. for high efficiency and low cost. All our LED strip lights are CE, RoHS certificated, ensuring high performance and a long lifetime. We offer customized solutions, OEM, ODM service. Wholesalers, distributors, dealers, traders, agents are welcome to purchase in bulk with us.
